Delta CP2000 Series User Manual

Chapter 7 Optional AccessoriesCP2000
7-105
Fan model『MKC-HFKM1』Heat Sink Fan
Applicable model
Following models use two sets of MKC-HFKM1:
VFD4000CP63A-00; VFD4000CP63A-21
1. Loosen the screw 1–4 and remove the top cover
(figure
1) Screw torque:
14–16 kg-cm / [12.2–13.9
Ib-in.] / [1.4–1.6 Nm]
2.
Loosen the screw and remove the top cover (figur
e
2). Sc
rew torque: 24–26kg-c
m / [20.8–22.6 Ib-in.] /
[2.4–2.5 Nm]

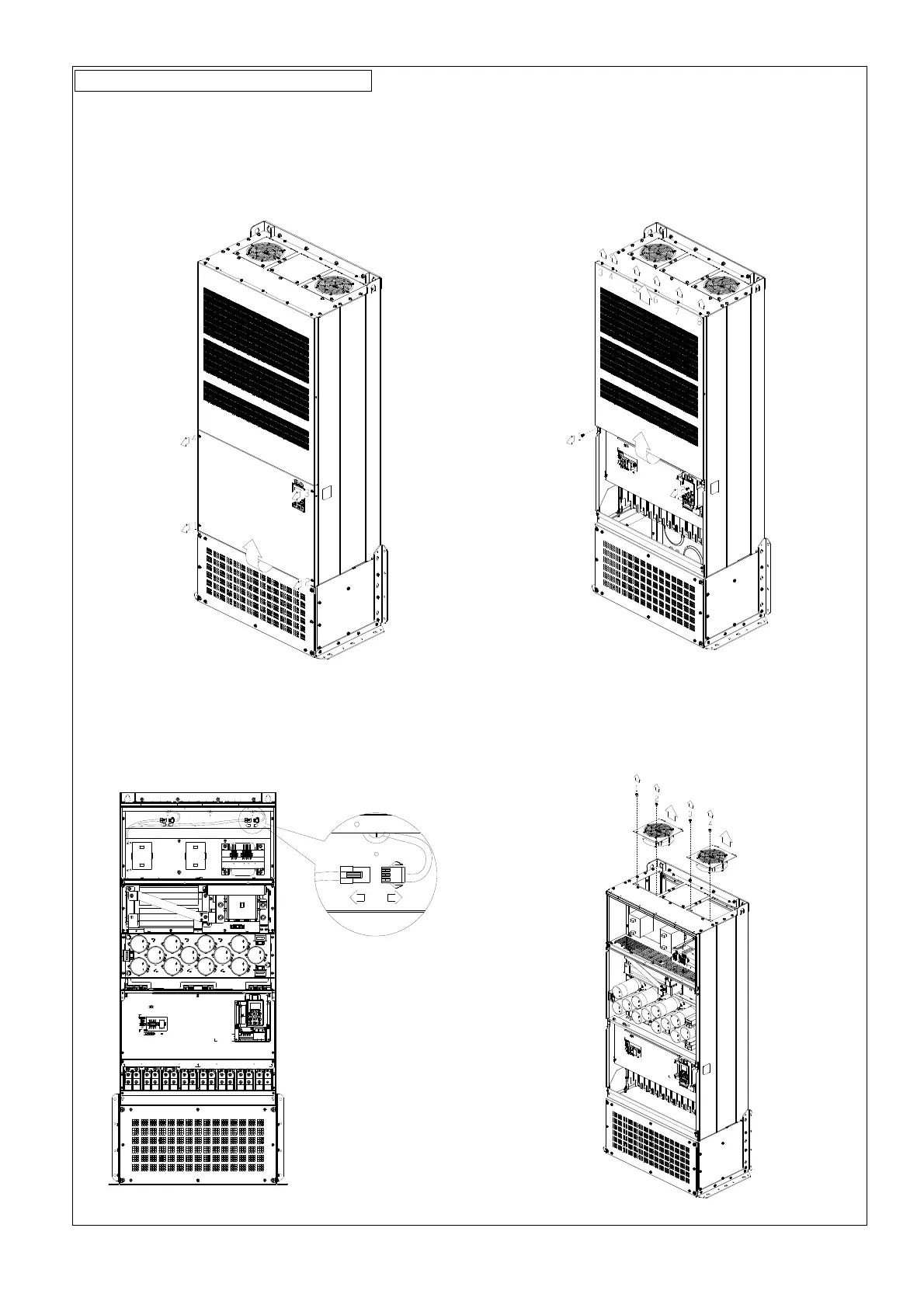

Figure 2
Figure 1
3. Dis
connect the fan (figure 3).
Figure 3
4.
Loosen the screw 1–4 (as shown below) and remo
ve
the fan. Make
sure fan power is disconnected be
fore
removal. Screw torque
: 24–26kg-cm / [20.8–22.6
Ib-in.] / [2.4–2.5 Nm]
Figure 4

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
