Delta CP2000 Series User Manual

Chapter 7 Optional AccessoriesCP2000
7-106
Fan model『MKC-HFKM1』Heat Sink Fan
Applicable model
Following models use three sets of MKC-HFKM1:
VFD4500CP63A-00; VFD4500CP63A-21; VFD5600CP63A-00; VFD5600CP63A-21; VFD6300CP63A-00;
VFD6300CP63A-21

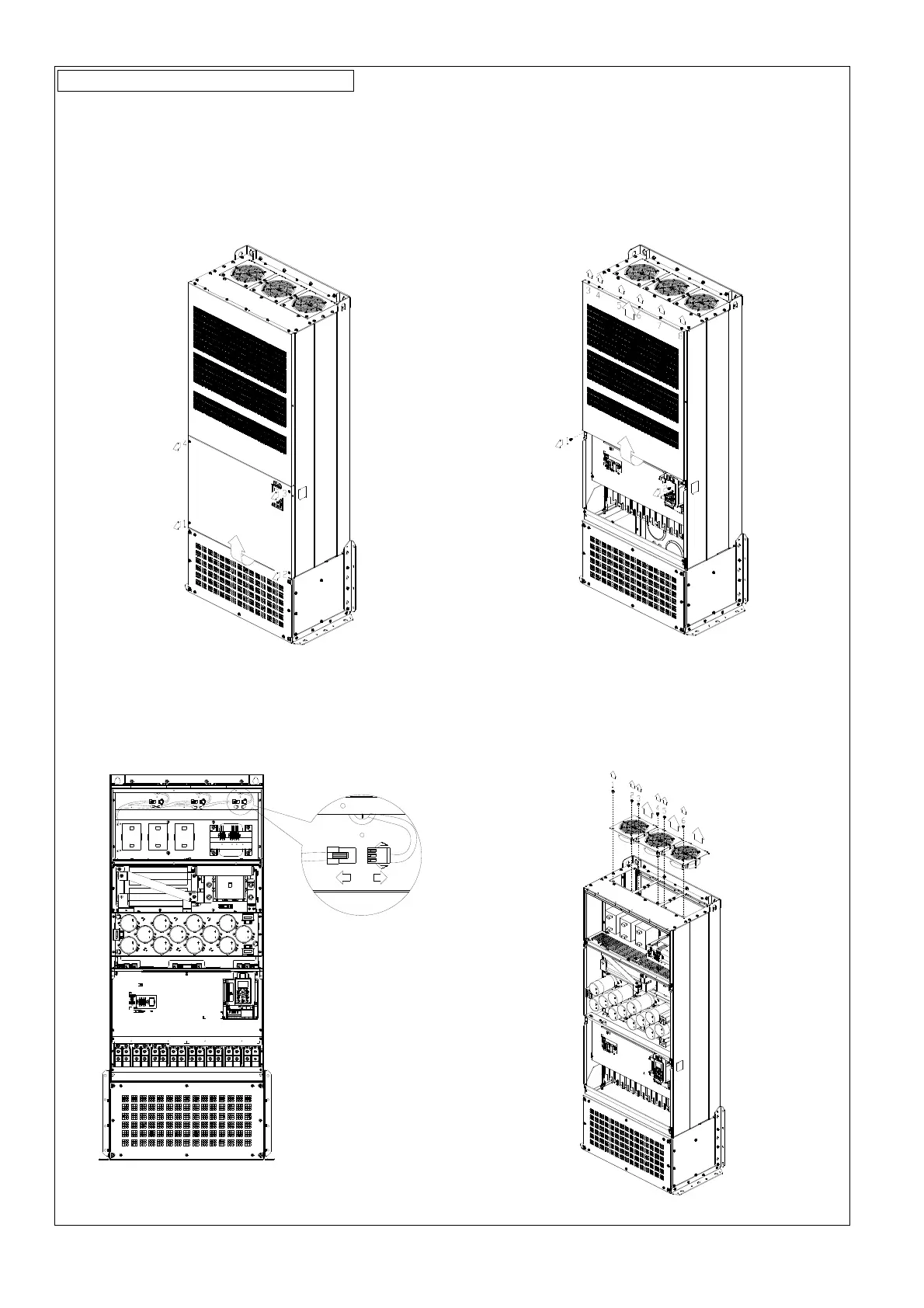

1. Loosen the screw 1–4 and remove the top cover
(figure 1) Screw torque: 14–16 kg-cm / [12.2–13.9
Ib-in.] / [1.4–1.6 Nm]

Figure 1
2. Loosen the screw and remove the top cover (figure
2). Screw torque: 24–26kg-cm / [20.8–22.6 Ib-in.] /
[2.4–2.5 Nm]

Figure 2
3. Disconnect the fan (figure 3).

Figure 3
4. Loosen the screw 1–6 (as shown below) and remove
the fan. Make sure fan power is disconnected before
removal. Screw torque: 24–26kg-cm / [20.8–22.6
Ib-in.] / [2.4–2.5 Nm]

Figure 4

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
