Delta CP2000 Series User Manual

Chapter 12 Description of Parameter SettingsCP2000
12.1-02-16


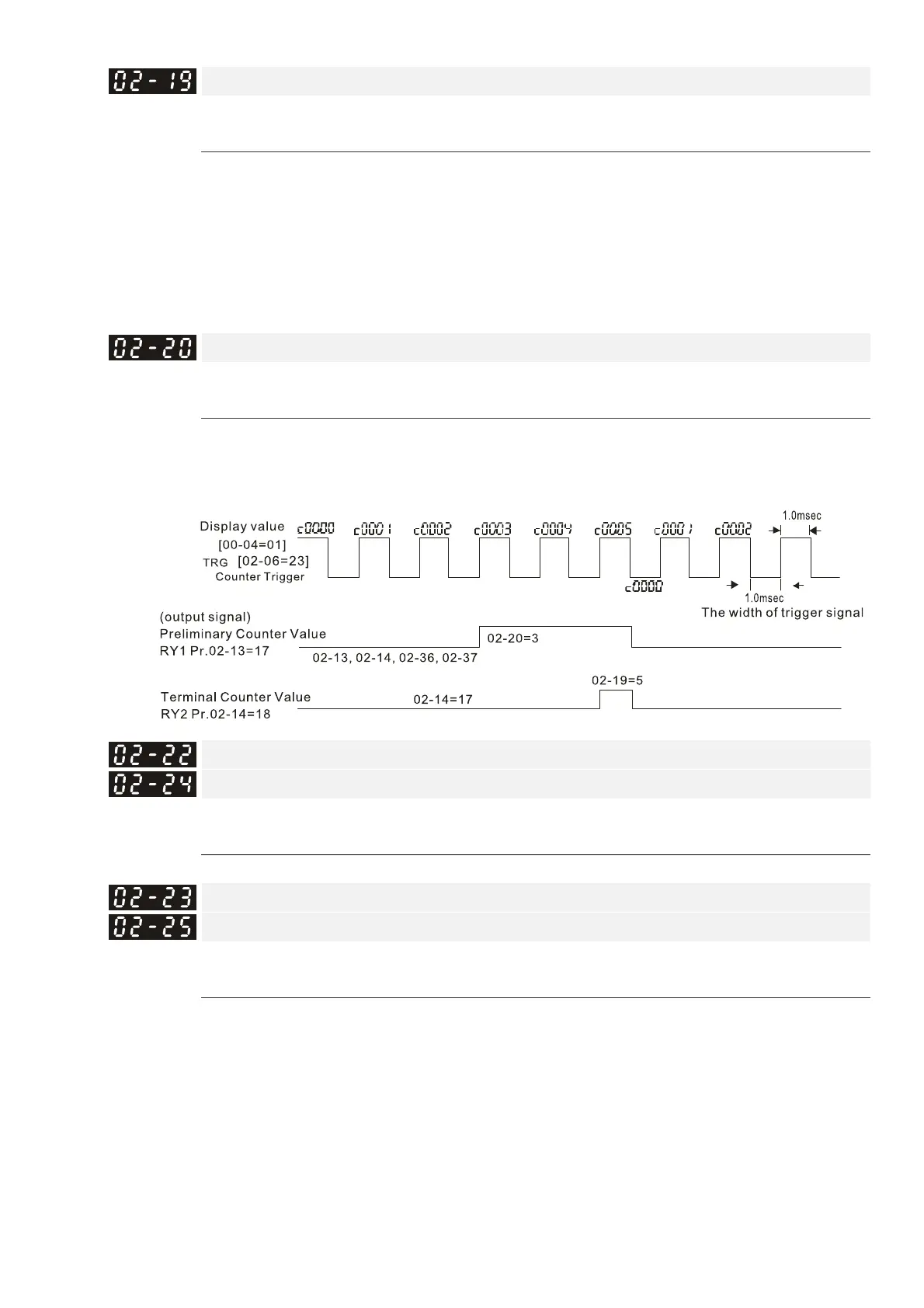

Terminal Counting Value Reached (return to 0)
Default: 0
Settings 0–65500
 You can set the input point for the counter using the multi-function terminal MI6 as a trigger
terminal (set Pr.02-06 to 23). When counting is completed, the specified multi-function output
terminal is activated (Pr.02-13, Pr.02-14, Pr.02-36, Pr.02-37 are set to 18), and Pr.02-19 cannot
be set to 0 at this time.
Example: When the displayed value is c5555, the drive count is 5,555 times. If the displayed
value is c5555, the actual count value is 55,550–55,559.

Preliminary Counting Value Reached (does not return to 0)
Default: 0
Settings 0–65500
 When the count value counts from 1 to reach this value, the corresponding multi-function output
terminal is activated (Pr. 02-13, Pr.02-14, Pr.02-36, Pr.02-37 are set to 17). You can use this
parameter as the end of counting to make the drive run from the low speed to stop.

Desired Frequency Reached 1

Desired Frequency Reached 2
Default: 60.00 / 50.00
Settings 0.00–599.00 Hz

The Width of the Desired Frequency Reached 1

The Width of the Desired Frequency Reached 2
Default: 2.00
Settings 0.00–599.00 Hz
 Once output speed (frequency) reaches the desired speed (frequency), if the corresponding
multi-function output terminal is set to 3–4 (Pr.02-13, Pr.02-14, Pr.02-36, and Pr.02-37), this
multi-function output terminal is “closed”.

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
