Chapter 12 Description of Parameter SettingsCP2000
12.1-03-25
When ACI Selection (Pr.03-29) is 0–10 V, the setting ranges for Pr.03-57, Pr.03-59 and Pr.03-61
must be 0.00–10.00 or 0.00–20.00.

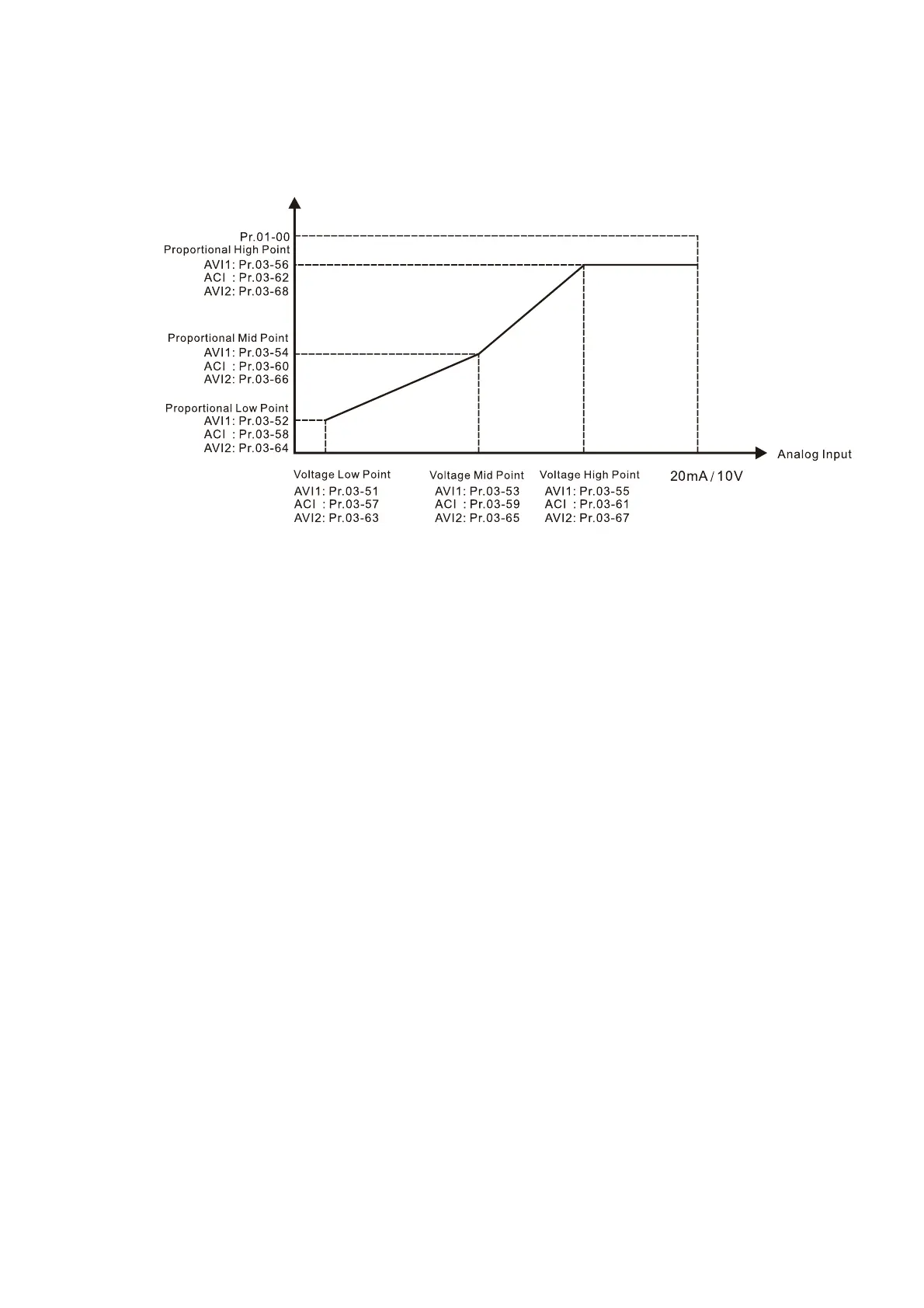

Set the analog input values at Pr.03-51–Pr.03-68 and the maximum operating frequency at
Pr.01-00. The corresponding functions of open-loop control are shown as image below.
