Chapter 12 Description of Parameter SettingsCP2000
12.1-12-2

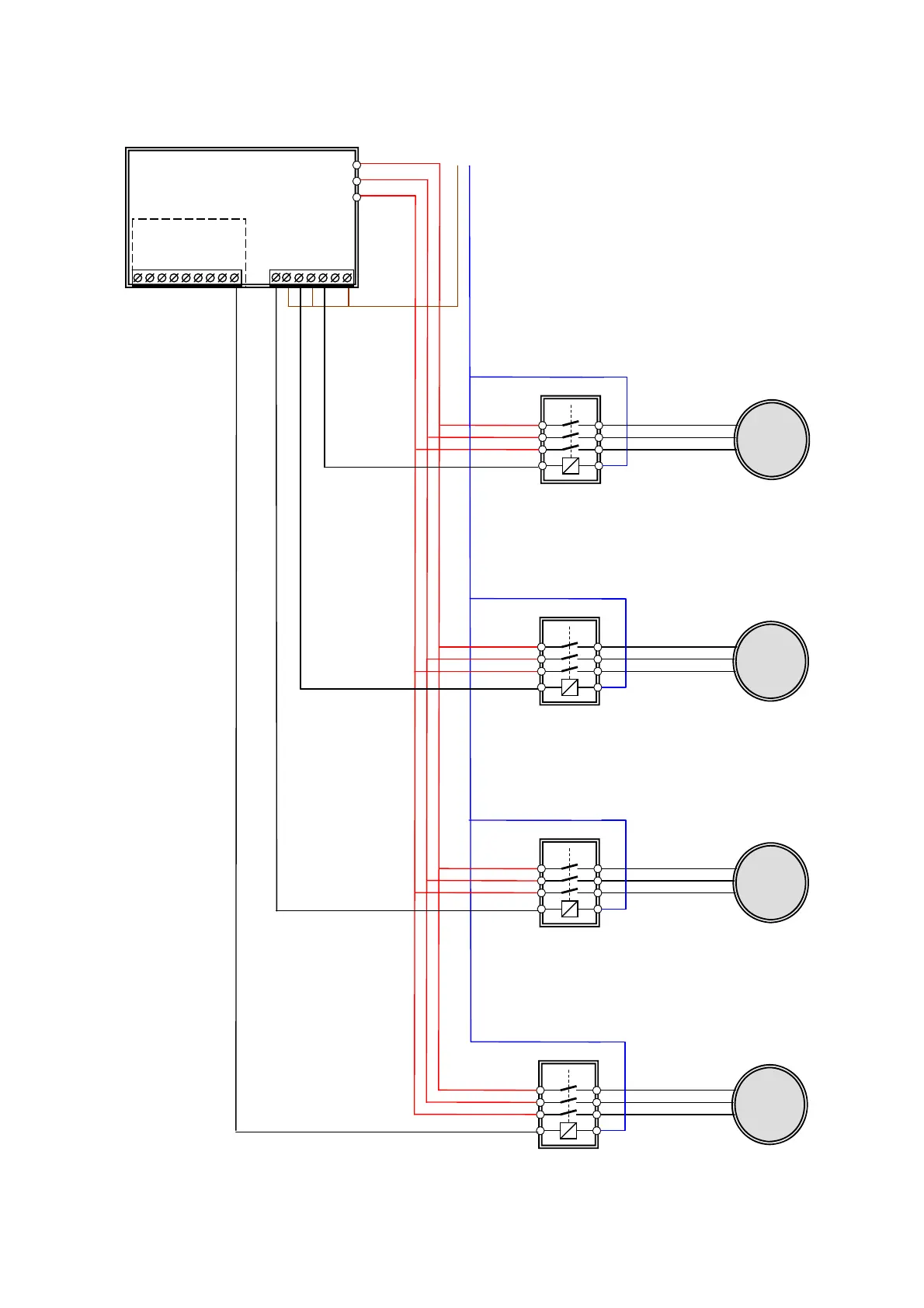

Wiring: Fixed Time Circulation (by time) can control up to eight motors. Diagram 12-2 shows an
example of controlling four motors at the same time.
Contactor
M1
Contactor
M2
Contactor
M3
Contactor
M4
L N
U V W
RA2
RC2
RA1
RB1
RC1
MO3
MO2
MO1
RA3
RC3
MO6
MO5
MO4
R6AA
V
FD-CP2000
Diagram 12-2: Wiring
