Delta CP2000 Series User Manual

Chapter 16 PLC Function Applications│CP2000
16-13

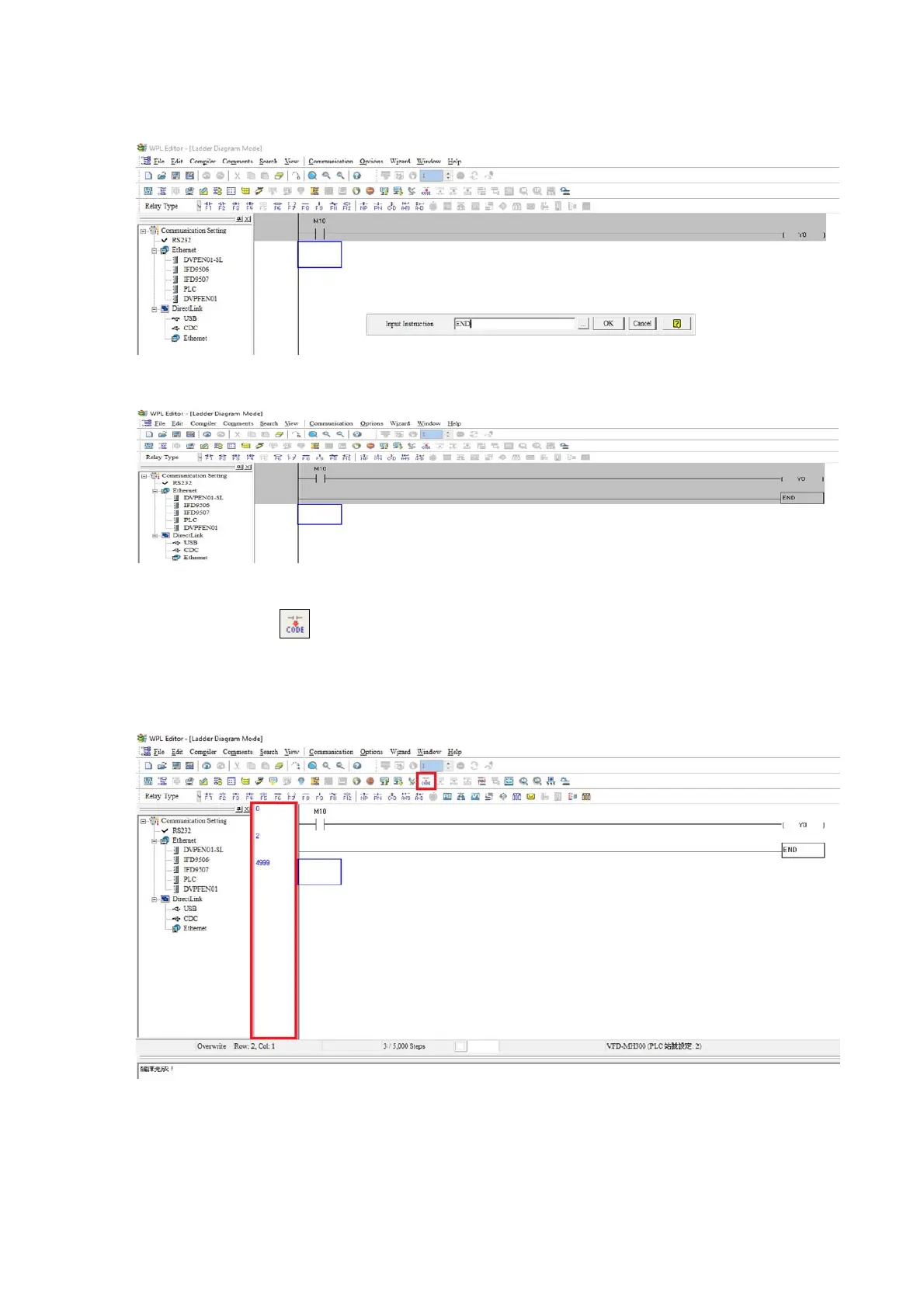

Step 4: Press “ENTER” button, when the “Input Instructions” window appears, key in “END” in the
field and press the OK button (see figure 16-16 and 16-17 below).
Figure 16-16
Figure 16-17
Step 5: Click on the
“Ladder diagram => Code” icon, which will compile the edited ladder
diagram as a command program. After compiling, the number of steps will appear on the left
side of the busbar (see figure 16-18 below).
Figure 16-18

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
