Delta CP2000 Series User Manual

Chapter 16 PLC Function Applications│CP2000
16-14
16-3-5 Program download
After inputting a program using WPLSoft, select compile
. After completing compilation, select
the to download a program. WPLSoft will perform program download with the online PLC in the
communications format specified in communications settings.
16-3-6 Program monitoring

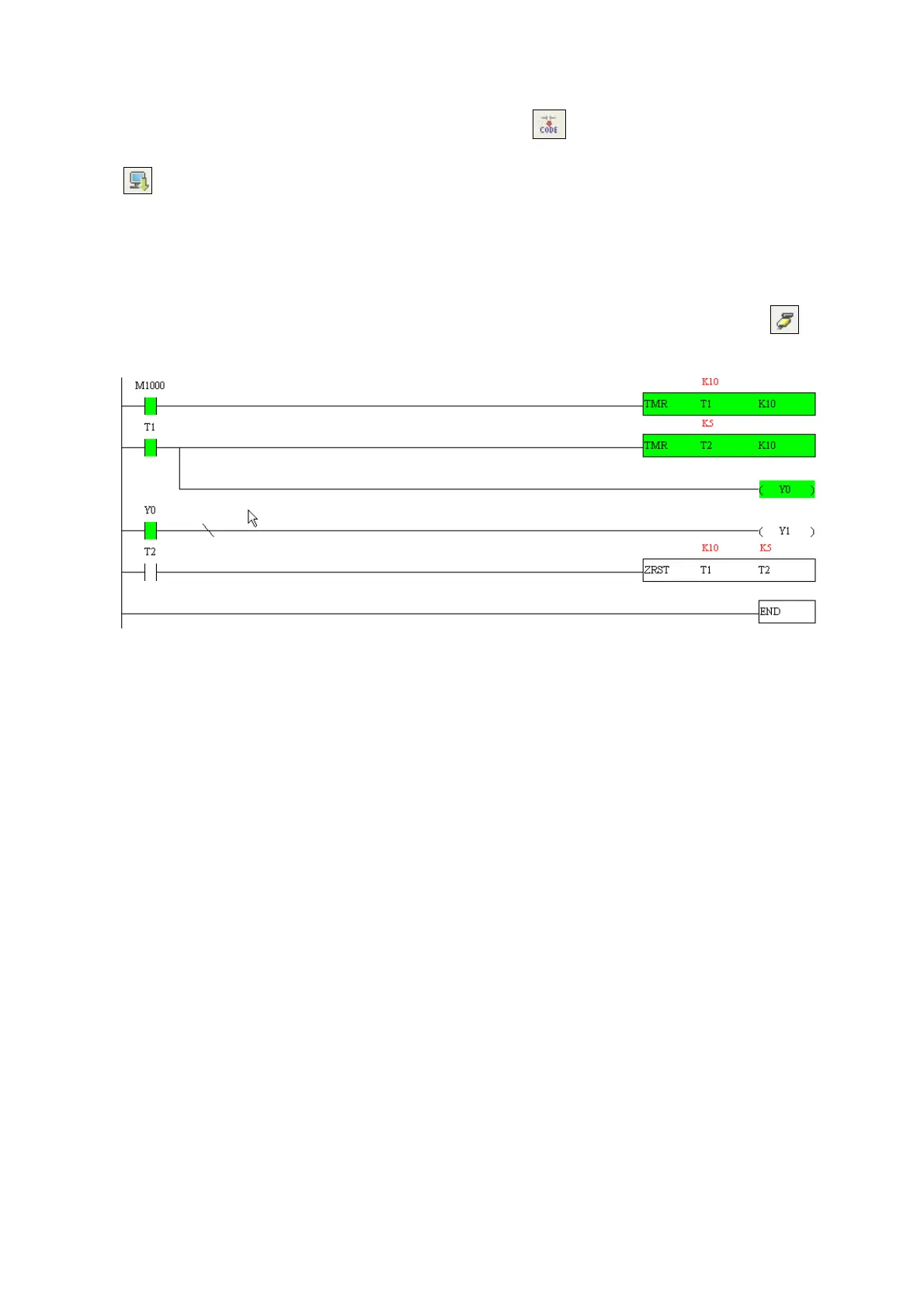

While confirming that the PLC is in the Run mode, after downloading a program, click on
in the
communications menu and select start ladder diagram control (see figure below)

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
