Delta CP2000 Series - Page 70

Chapter 3 UnpackingCP2000
3-29
Weight
63.6 kg(140.2 Ibs.)
37.6 kg(82.9 Ibs.)
66 kg(145.5 Ibs.)
40 kg(88.2 Ibs.)
VFDXXX C X
130kg(286.5 Ibs.)
85kg(187.2 Ibs.) 88kg(193.8 Ibs.)
27 kg(59.5 Ibs.)
29 kg(63.9 Ibs.)
138kg(303.9 Ibs.)
D0
D
E
F
G
X
XXE
VFD
X
X
X
C
X
X
X
A
VFDXXXXCPXXS-00: 27 k
g
/
[
59.5 lbs
]
VFDXXXXCPXXS-21: 29 k
g
/ [63.9 lbs]
VFDXXXCPXXX-00: 37.6 kg / [82.9 lbs]
VFDXXXCP63A-00: 39.0 kg / [86.0 lbs]
VFDXXXCPXXX-21: 40 kg / [88.2 lbs]
VFDXXXCP63A-21: 41.1 kg / [91.3 lbs]
VFDXXXCPXXX-00: 63.6 kg / [140.2 lbs]
VFDXXXCP63A-00: 61.0 kg / [134.5 lbs]
VFDXXXCPXXX-21: 66 kg / [145.5 lbs]
VFDXXXCP63A-21: 63.4 kg / [139.8 lbs]
VFDXXXCPXXX-00: 85 kg / [187.2 lbs]
VFDXXXCP63A-00: 88.0 kg / [194.0 lbs]
VFDXXXCPXXX-21: 88 kg / [193.8 lbs]
VFDXXXCP63A-21: 91.0 kg / [200.7 lbs]
VFDXXXCPXXX-00: 130 kg / [286.5 lbs]
VFDXXXCP63A-00: 135.0 kg / [297.6
VFDXXXCPXXX-21: 138 kg / [303.9 lbs]
VFDXXXCP63A-21: 143.0 kg / [315.3 lbs]

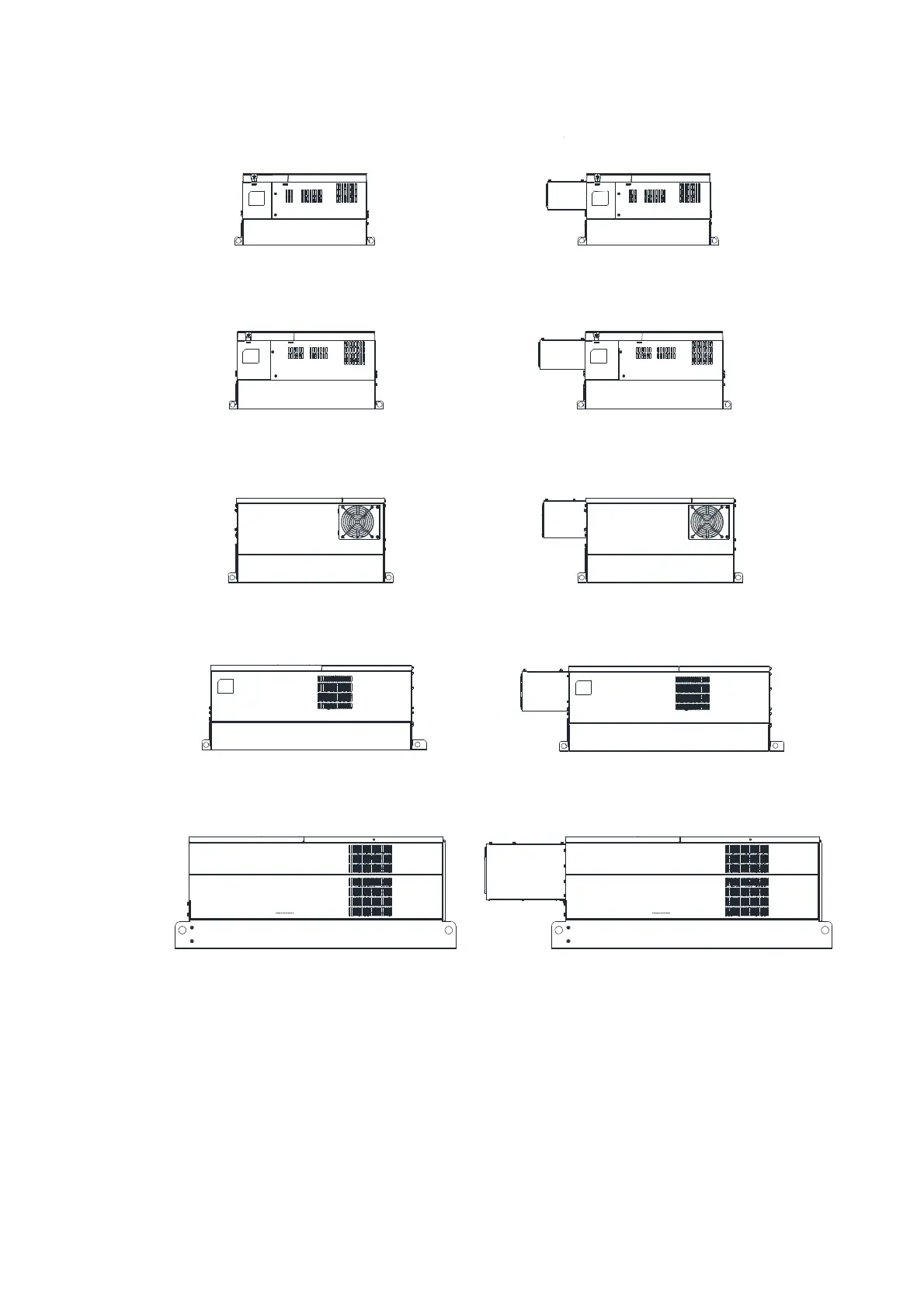

Figure 3-98
Figure 3-90
Figure 3-91
Figure 3-89
Figure 3-92
Figure 3-93 Figure 3-94
Figure 3-95 Figure 3-96
Figure 3-97
