Delta CP2000 Series User Manual

Chapter 3 UnpackingCP2000
3-30
H1
V
F
D
2
8
00
C
43
A
; V
F
D31
5
0
C
43
A
; V
F
D3
5
5
0
C
43
A
; V
F
D4
5
00
C
43
A
235kg(518.1 Ibs)
H2
VFD2800C43E-1; VFD3150C43E-1; VFD3550C43E-1; VFD4500C43E-1
257kg(566.6Ibs)
H3
VFD2800C43E; VFD3150C43E; VFD3550C43E; VFD4500C43E
257kg(566.6Ibs)

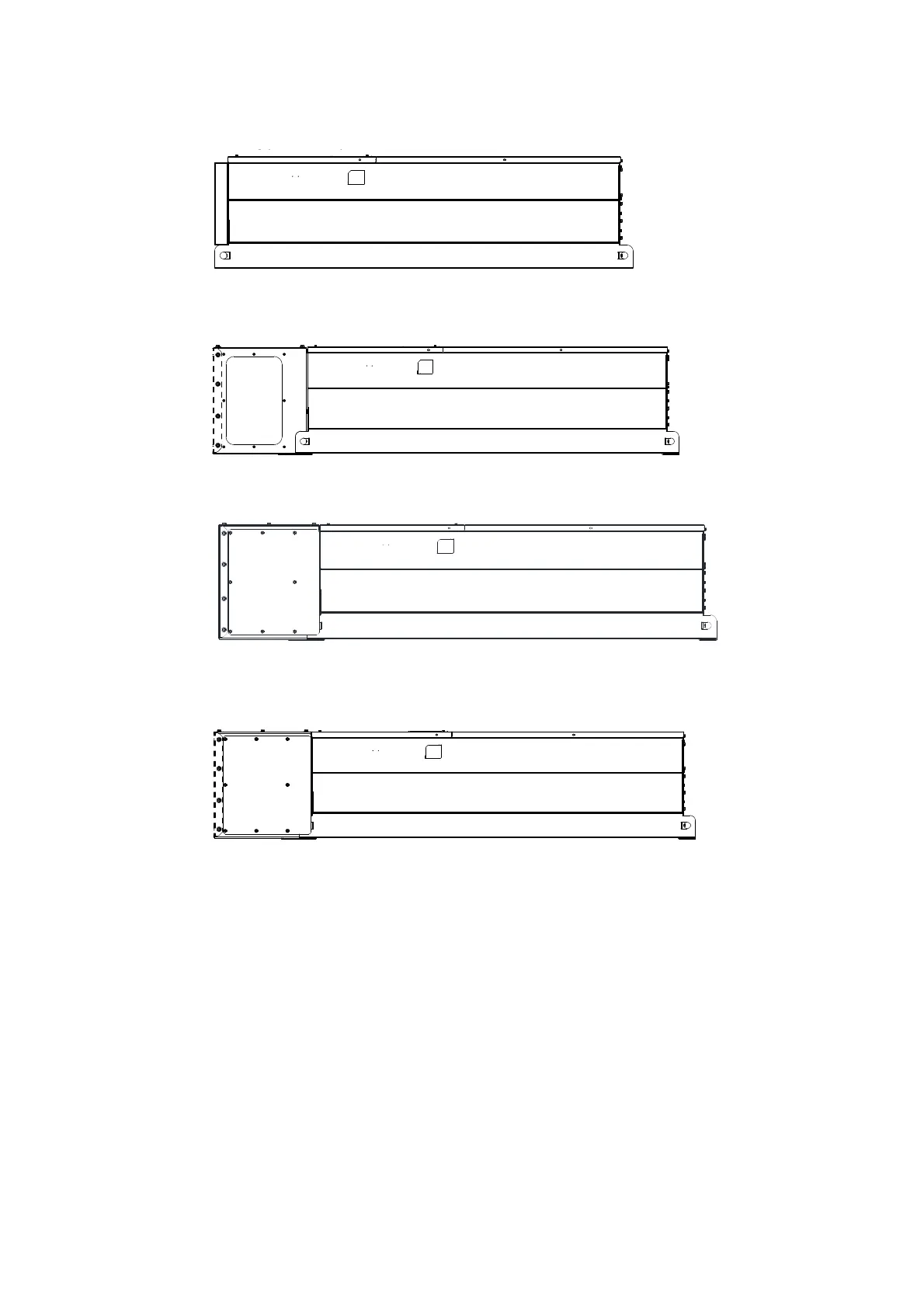

Figure 3-99
Figure 3-101
Figure 3-100
VFDXXXXCP43A-00: 244 kg / [537.9 lbs]
VFD5600CP43A-00, VFD6300CP43A-00: 270 kg / [595.2 lbs]
VFDXXXXCP63A-00: 243.0 kg / [535.7 lbs]
VFDXXXXCP43C-00: 260 kg / [573.2 lbs]
VFDXXXXCP63A-21: 251.0 kg / [553.5 lbs]
VFDXXXXCP43C-21: 269 kg / [593.0 lbs]
VFD5600CP43C-21, VFD6300CP43C-21: 295 kg / [650.4 lbs]
Figure 3-102

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
