Delta CP2000 Series User Manual

Chapter 6 Control TerminalsCP2000
6-2
Analog input terminals (AVI1, AVI2, ACI, ACM)
 Analog input signals are easily affected by external noise. Use shielded wiring and
keep it as short as possible (< 20 m) with proper grounding. If the noise is inductive,
connecting the shield to terminal ACM can bring improvement.
 When using analog input signal in the circuit, twisted pair is suggested to use for
dealing with weak signal.

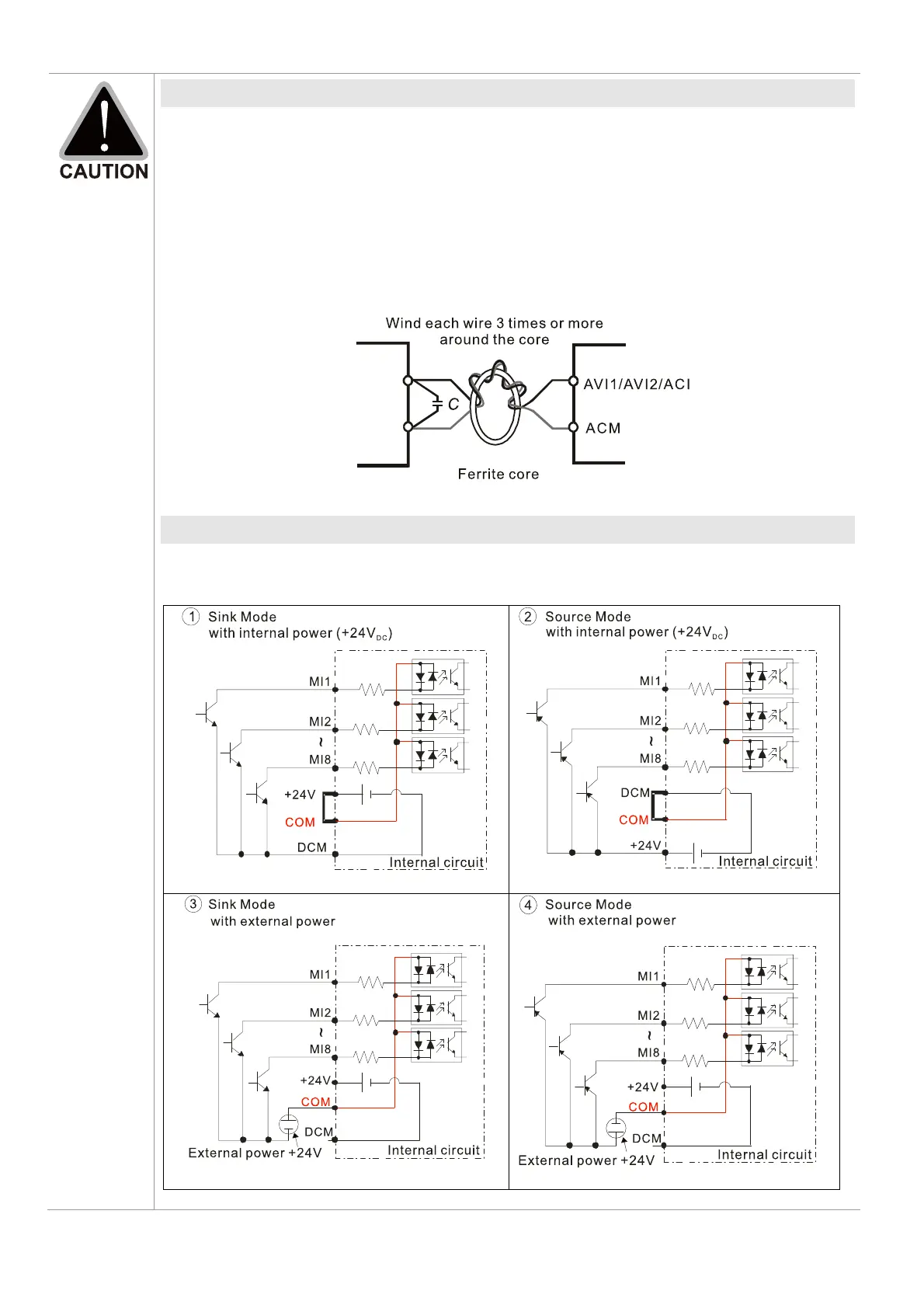

 If the analog input signals are affected by noise from the AC motor drive, please
connect a capacitor and ferrite core as indicated in the following diagram.
Figure 6-1
Digital inputs (FWD, REV, MI1–MI8, COM)
 The “COM” terminal is the common side of the photo-coupler. Any of wiring method,
the “common point” of all photo-coupler must be the “COM”.
Figure 6-2 Figure 6-3
Figure 6-4 Figure 6-5

Delta CP2000 Series Specifications

General

Output Voltage	0 ~ Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to 60°C
Input Voltage	200-240V AC, 380-480V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
