Delta DVP02TK-S User Manual

Chapter 1 Introduction
1-11
1_

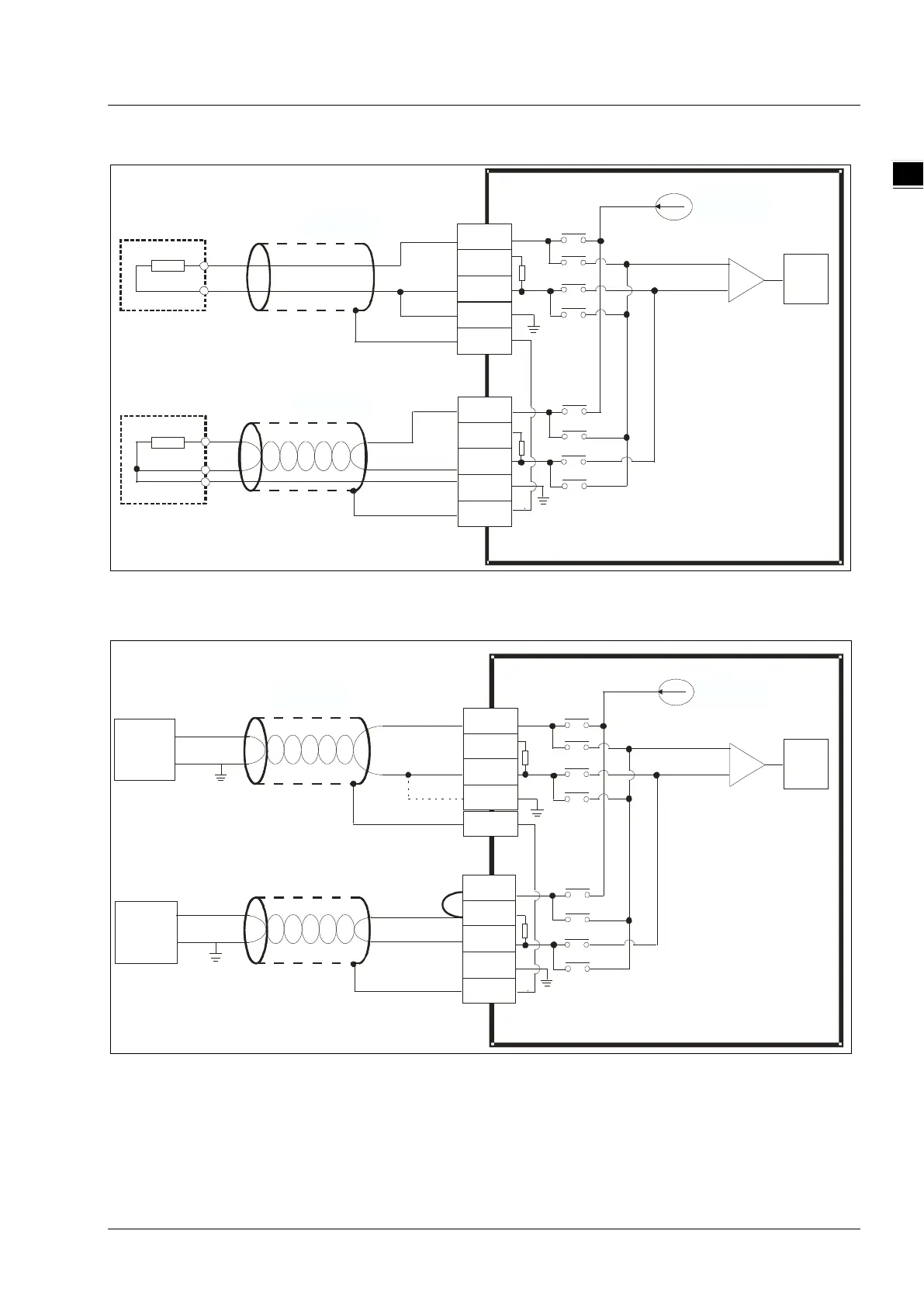

 Sensor input wiring
電流輸出
AG
ADC
AG
I NA
隔離線*1
CH1
L+
L-
I-
SLD
2-Wire
I+
SLD
3-Wire
L+
L-
I-
I+
Pt100/JPt100
/Pt1000
隔離線*1
CH2
Ni100/Ni1000/Ni120
LG-Ni1000/Cu50/Cu100
Pt100/JPt100/Pt1000
Shielded
Cable*1
Shielded
Cable*1
Current Output
 Voltage/Current input wiring
電流輸出
AG
ADC
AG
INA
隔離線*1
CH1
CH2
0mV~+50 mV,
0V~+5V,
0V~+10V
+
-
L+
L-
I-
SLD
I+
0mA~+20mA,
4mA~+20mA
+
-
L+
L-
I-
SLD
I+
-100mV~+100mV,
Shielded
Cable*1
Current Output
