DVP02TK-S/DVP02TU-S Temperature Control Module Manual
2-22
_2
Setting
Value

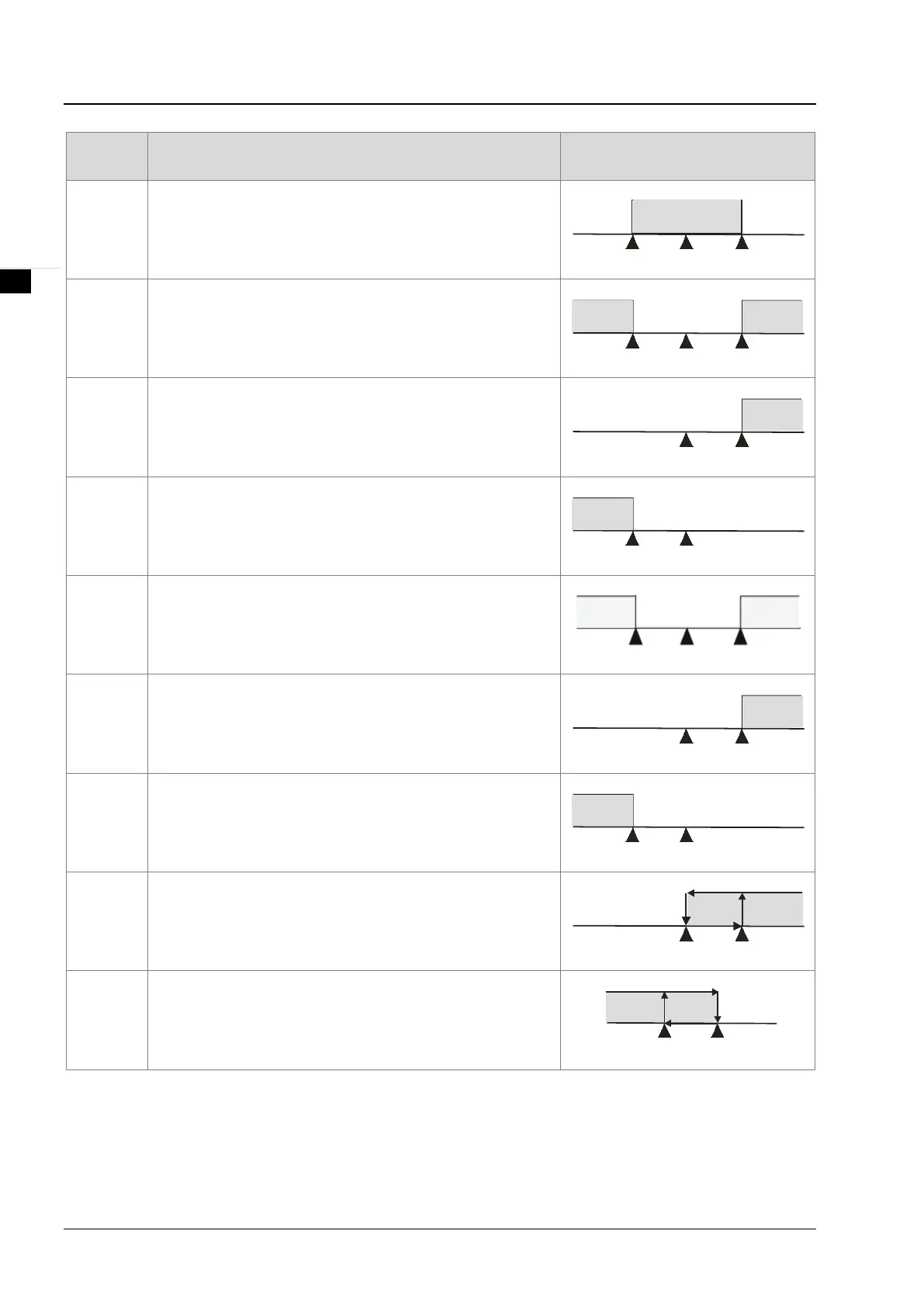

Alarm Type Alarm Output Operation
4
Upper and lower alarm reverse action: This alarm output
operates when the PV is between SV+AL-H and SV- AL_L.
ON
OFF
SVAL-L AL-H
5
Absolute value upper- and lower-limit: This alarm output
operates when the PV is higher than the setting value AL-H or
lower than the setting value AL-L.
ON
OFF
AL-L AL-H
6
Absolute value upper-limit: This alarm output operates when the
PV is higher than the setting value AL-H.
ON
OFF
AL-H
7
Absolute value lower-limit: This alarm output operates when the
PV is lower than the setting value AL-L.
ON
OFF
AL-L
8
Standby alarm value upper- and lower-limit: This alarm output
operates when the PV is at the set value and the temperature is
higher than the setting value SV+AL-H or lower than the setting
value SV- AL_L.
ON
OFF
SVAL-L AL-H
9
Standby alarm value upper-limit: This alarm output operates
when the PV is at the set value and the temperature is higher
than the setting value SV+AL-H.
ON
OFF
SV AL-H
10
Standby alarm value lower-limit: This alarm output operates
when the PV is at the set value and the temperature is lower
than the setting value SV- AL_L.
ON
OFF
SVAL-L
11
Hysteresis upper-limit alarm output: This alarm output operates
if PV value is higher than the setting value SV+AL-H. This alarm
output is OFF when the PV is lower than the setting value
SV+AL-L.
ON
OFF
AL-L
AL-H
12
Hysteresis lower-limit alarm output: This alarm output operates
if PV value is lower than the setting value SV-AL-H. This alarm
output is OFF when the PV is higher than the setting value
SV-AL-L.
ON
OFF
AL-L
AL-H
