Chapter 2 Control Register
2-31

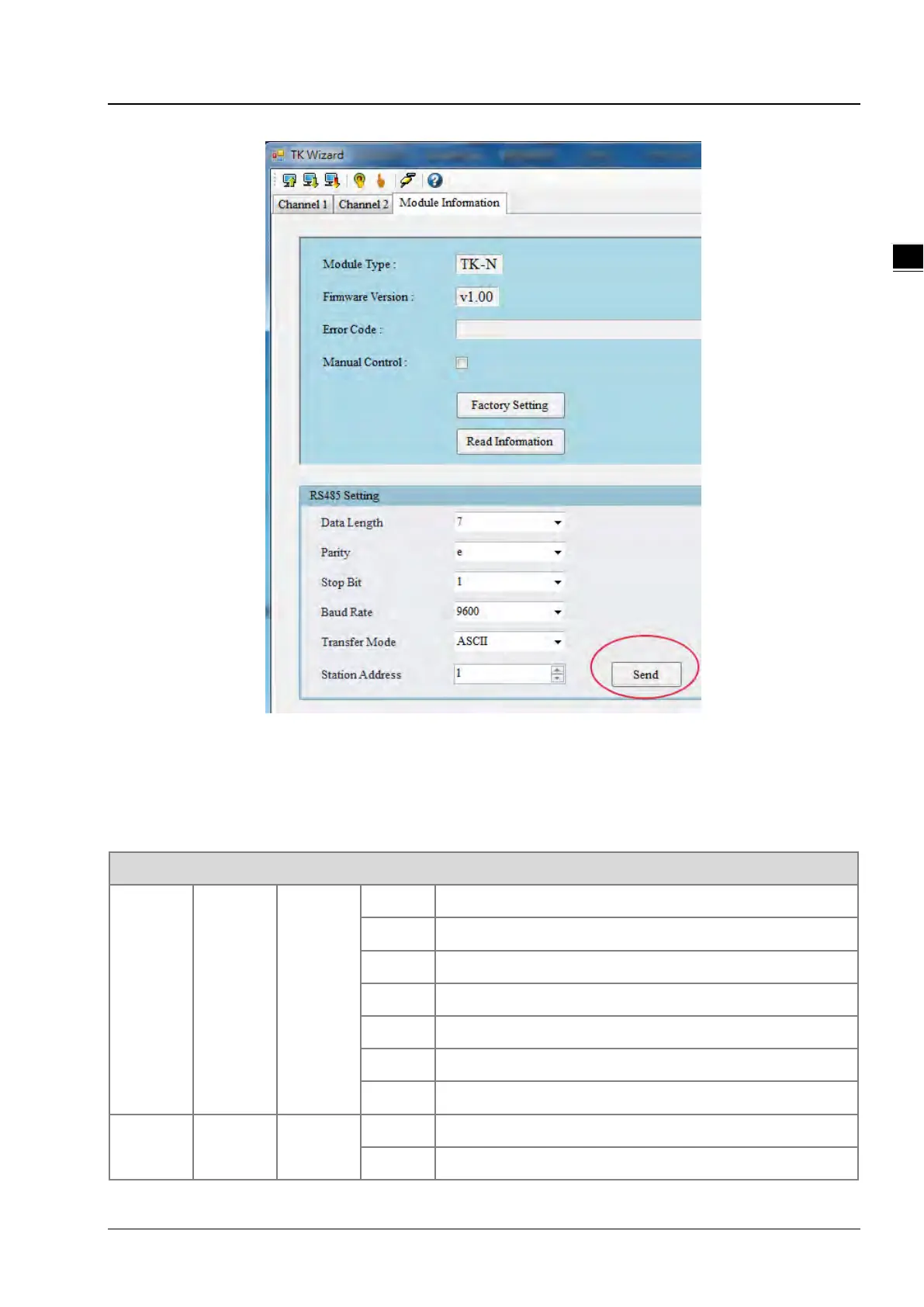

• MODBUS address setup:
Write the value 0x00XY (refer to the following list for X and Y setups) in MODBUS address (0x0F09).
Example: the value 0x0000 (X=0/Y=0) indicates the baud rate is 9600, data length is 7, stop bits is 1 and the parity is
Even.
RS-485 Communication Setting Address = 0x0F09, written value is 0x00XY
X Bit7~Bit4
Baud Rate
(bps)
Value Description
0 9600 (default)
1 19200
2 38400
3 57600
4 115200
5~16 reserved
Y Bit3 Data Length
0 7 (default)
1 8
To Next Page
