Chapter 3 : Installation
10
Chapter 3 : Installation
In this chapter, you will learn the installation procedures for the EnviroStation,
EnviroProbes, Alarm Beacon, and devices connecting via RS485, Sensor HUB,
Digital Inputs, Analog Inputs and Relay Outputs.
3.1. Rack-mount Installation

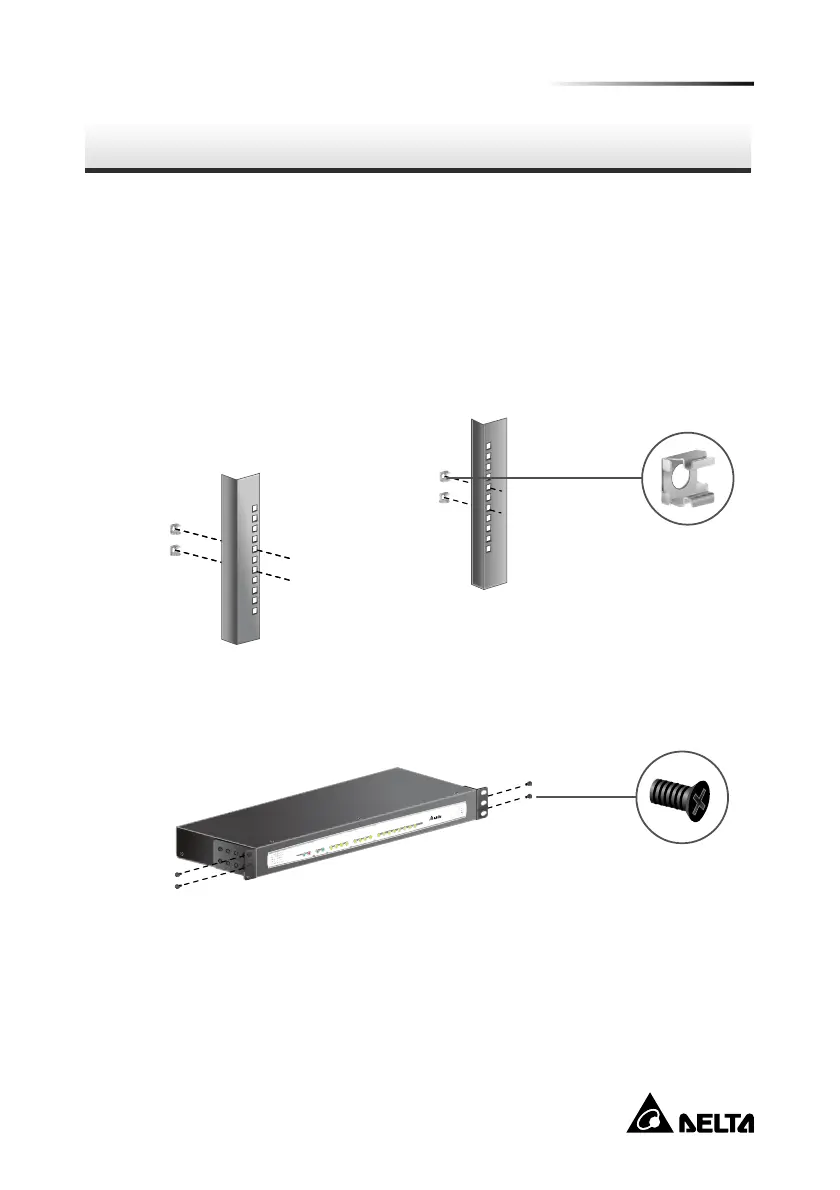

Step 1 Choose a location in the rack. On the vertical mounting rails, insert the
provided cage nuts.
Step 2 Using two screws, attach two bracket ears provided in the accessory box
to each end of the EnviroStation.
Step 3 Make sure the mounting holes and the bracket ears on the EnviroStation
are aligned properly, then secure the bracket ears to the rack with the four
provided mounting screws (two for each end), EnviroStation occupies 1U
of rack space.
