Chapter 3 : Installation
14

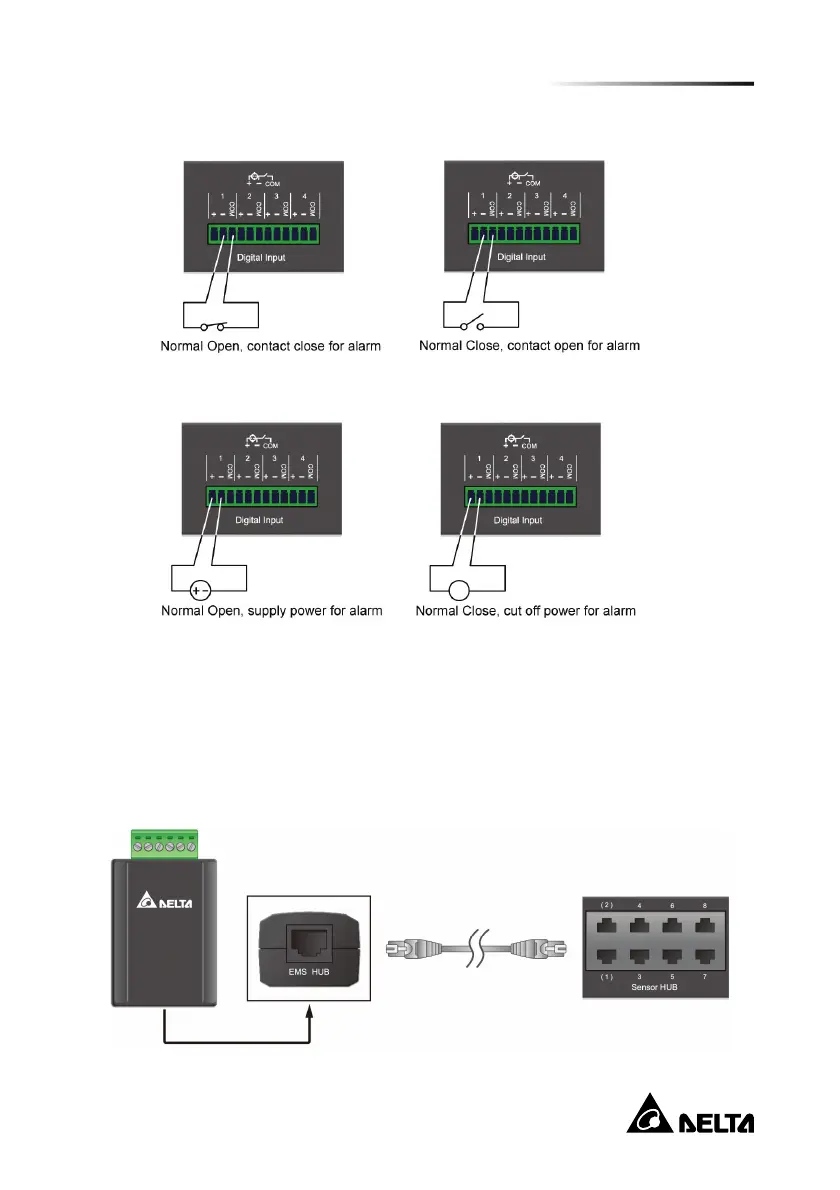

Dry Contact : Normal Open [NO] or Normal Close [NC].
Wet Contact: Active rating 5~24Vdc, 1~9mA.
3.5. Sensor HUB
In the accessory box you can find eight provided Sensor HUB adapters (RJ45 to
6-pin terminal connector) which are used to connect peripheral devices for purposes
such as smoke, fire and door contact detection. To connect a Sensor HUB device,
please see the following instructions:
