InfraSuite EnviroStation 15
Connect a Sensor HUB adapter to a Sensor HUB port on the rear panel with a
standard CAT5 cable.
On the other side of the adapter, plug a 6-pin terminal block (provided with the
package) into the green terminal connector so wires from peripheral devices can
be tightened and fixed with the screws.

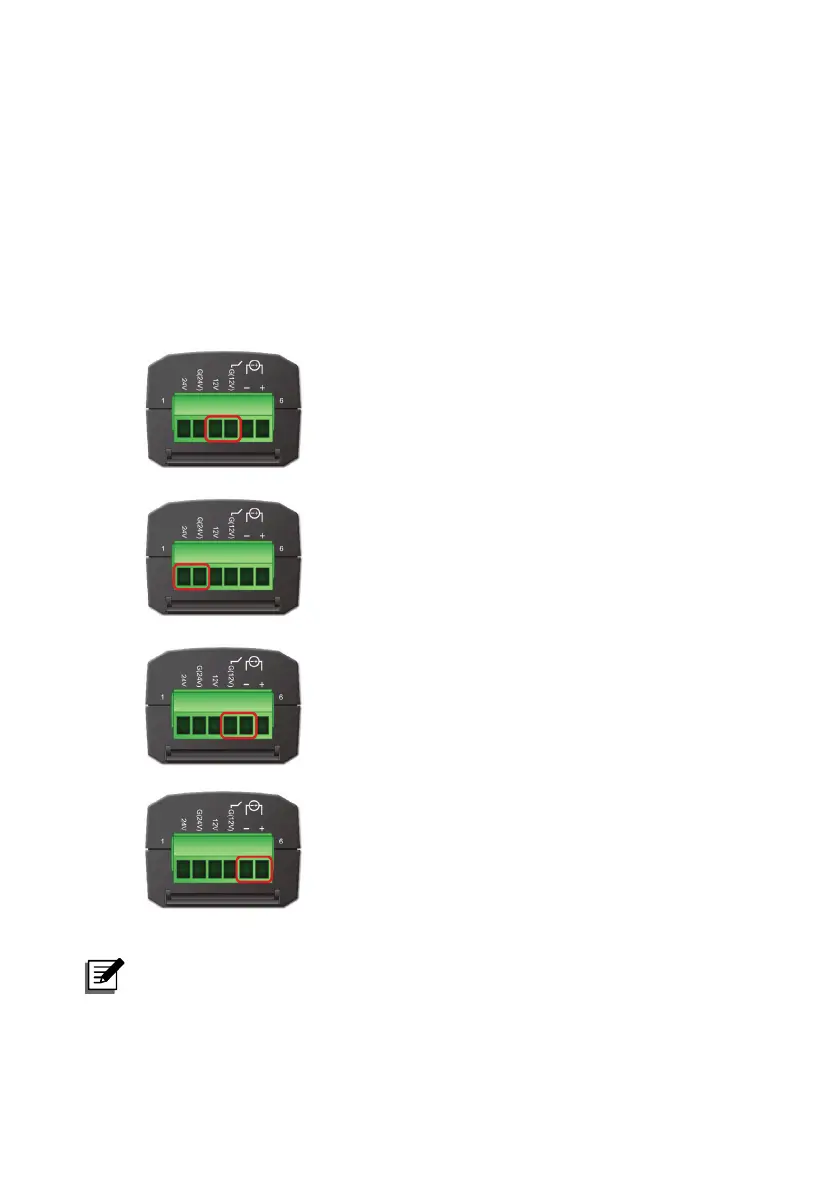

Depending on the contact types and power requirement of the devices you are
connecting, different terminal connections are required. Please see the following
figures:
1) +12Vdc is provided by connecting the
following two terminal points: 12V and G
(12V).
2) +24Vdc is provided by connecting the
following two terminal points: 24V and G
(24V).
3) Connect Dry Contact signal to G (12V) and –
terminal points.
4) Connect Wet Contact signal to + and –
terminal points. The active rating is
5~24Vdc, 1~9mA.
NOTE:
For HUB1/ HUB2, you can manually turn on/ off power or enable automatic
power control. Please see 5.2.1 Management – Sensor HUB.
