Chapter 4
Installation & Wiring
26
4.2
External Battery Cabinet
D
W
H

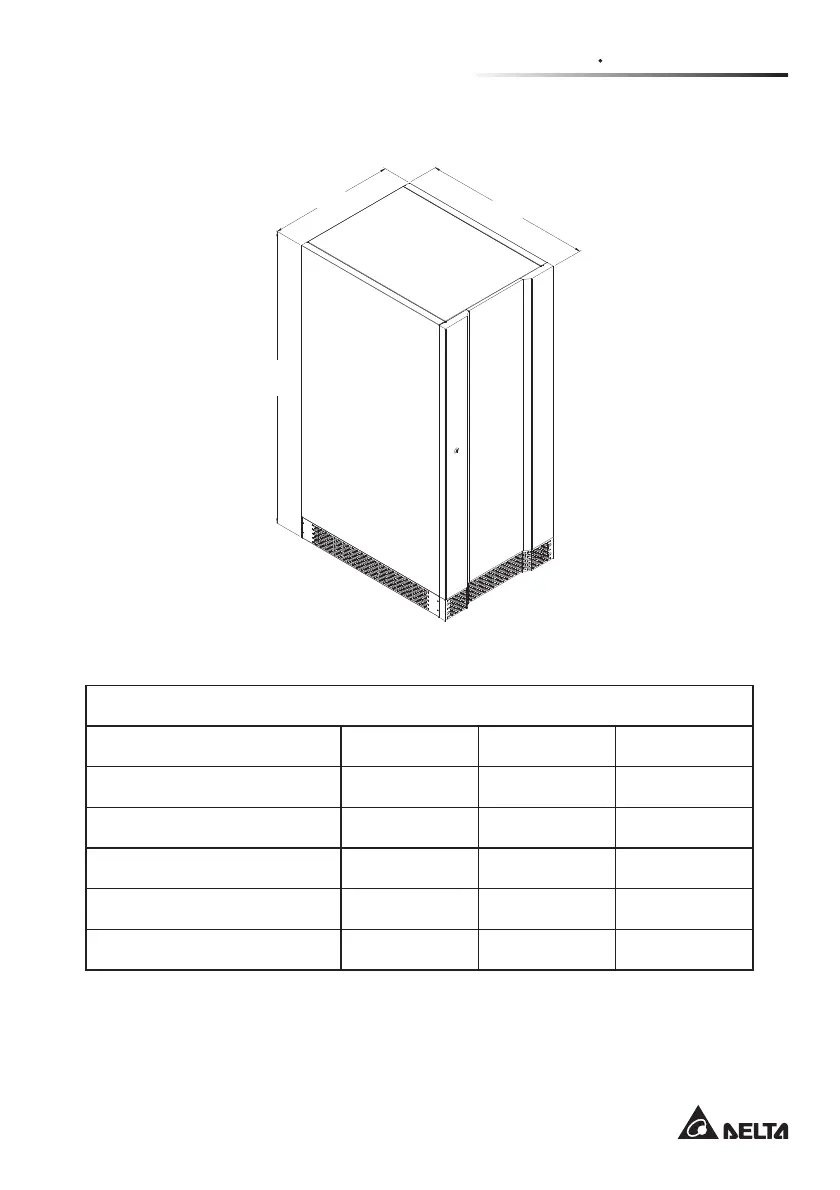

Figure 4-15
External Battery Cabinet Dimensions T
able
(
Figure 4-15
)
Battery T
ype
Width (mm)
Depth (mm)
Height (mm)
12V/ 26AH × 29PCS
600
800
1400
12V/ 40AH × 29PCS
600
800
1400
12V/ 26AH × 58PCS
900
830
1700
12V/ 40AH × 58PCS
900
830
1700
12V/ 100AH × 29PCS
970
830
1700
30
32
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 : Important Safety Instructions
6
Chapter 2 : Introduction
8
Chapter 3 : Operation Modes
9
Normal Mode (Single)
9
Back-Up Mode (Single)
10
Reserve AC Supply Mode (Single)
11
Maintenance Bypass Mode (Single)
12
ECO Mode (Only for Single Unit)
13
Normal Mode (Parallel)
14
Back-Up Mode (Parallel)
15
Reserve AC Supply Mode (Parallel)
16
Maintenance Bypass Mode (Parallel)
18
Hot Standby Redundancy
19
Common Battery
20
Dry Contacts
22
Chapter 4 : Installation & Wiring
24
UPS Mechanism Data
24
External Battery Cabinet
31
External & Internal Views
32
80Kva
32
120Kva
34
100Kva (Input: 480Vac; Bypass: 208/ 120Vac; Output: 208/ 120Vac)
36
200Kva
38
400Kva
40
500Kva
42
Installation Environment and Safety Precaution
43
Electrical Connection Precaution
44
Wiring Precaution
44
NT-Series 500Kva Installation and Wiring
45
UPS Installation Checklist
53
Floor Weight Loading Table
54
Cable Selection
55
Electrical Connections
57
30Kva Output 220Vac Terminal Wiring Diagram
57
60Kva Output 220/ 380Vac Terminal Wiring Diagram
58
80Kva Output 220/ 380Vac Terminal Wiring Diagram
59
100Kva Output 220/ 380Vac Terminal Wiring Diagram
60
100Kva Output 208/ 120Vac Terminal Wiring Diagram (Only for Dual Input Application)
61
120Kva Output 220/ 380Vac Terminal Wiring Diagram
62
160/ 200Kva Output 220/ 380Vac Terminal Wiring Diagram
63
260/ 400Kva Output 220/ 380Vac Terminal Wiring Diagram
64
500Kva Output 220/ 380Vac Terminal Wiring Diagram
65
UPS Parallel Wiring Diagram (Single Input)
66
UPS Parallel Wiring Diagram (Dual Input)
67
Communication Interfaces (NT-Q Board)
68
Dry Contact Wiring Diagram (Default Value)
69
Pin Assignment
69
Chapter 5 : External Battery Cabinet
70
External Battery Cabinet Usage Warnings
70
Chapter 6 : UPS Display and Settings
72
Control Panel
72
LCD Display Screen
73
Chapter 7 : UPS Operation
92
Start-Up Procedures
92
Normal Mode Start-Up Procedures (Single)
92
Battery Mode Start-Up Procedures (Single)
93
Manual Bypass Mode Start-Up Procedures (Single)
93
ECO Mode Start-Up Procedures (Single)_ Only Applicable to Single Unit with Capacity above 260Kva (Included)
95
To Single Unit with Capacity above 260Kva (Included)
95
Normal Mode Start-Up Procedures (Parallel)
96
Battery Mode Start-Up Procedures (Parallel)
97
Manual Bypass Mode Start-Up Procedures (Parallel)
98
To Single Unit with Capacity above 260Kva (Included)
102
Chapter 8 : Optional Accessories
105
Input Harmonic Filter
105
Remote Monitor
106
Monitoring Software
106
Battery Start-Up
106
ECO Mode
106
Appendix 2 : Warranty
109
