Delta NT Series User Manual

Chapter 4 Installation & Wiring
56

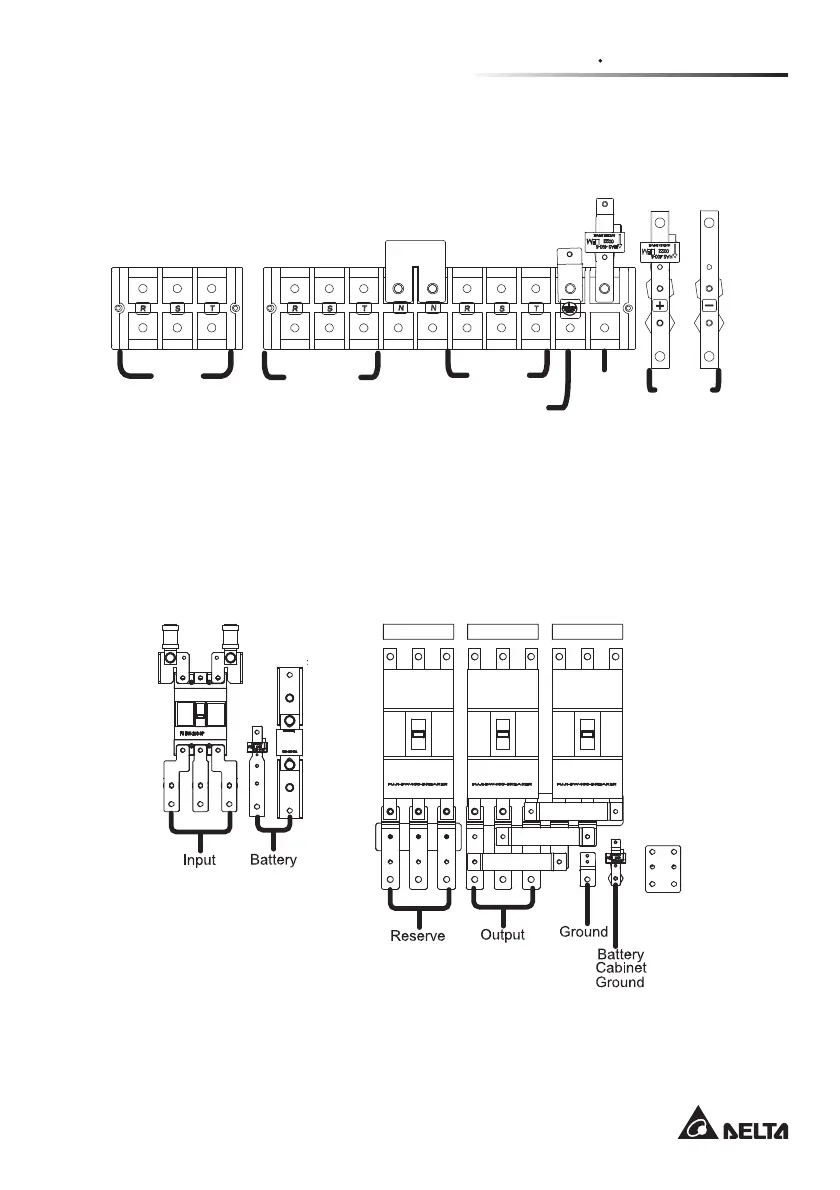

Dual input: When there are two input (mains and reserve) sources, remove the
cables (wire number 1B, 2B and 3B) from the input terminals. The wiring diagram is
as follows.
Input
Battery
Output
Battery
Cabinet
Ground
Reserve
Ground
4.9.5 100kVA Output 208/ 120Vac Terminal Wiring Diagram
(Only for Dual Input Application)
7KHN9$LQSXWYROWDJHǻ9ĭ:RXWSXWYROWDJH9ĭ:836
is only for dual input application. The wiring diagram is as follows.
