Ultron NT Series

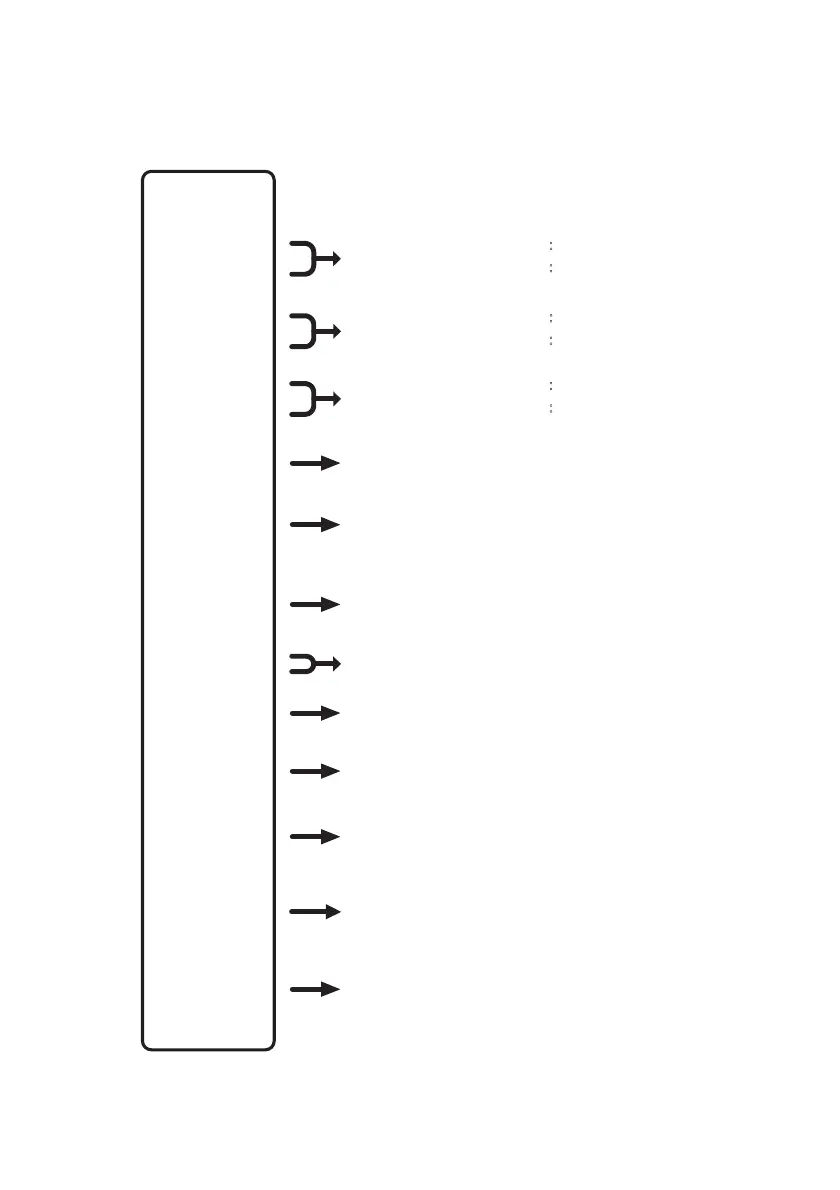

4.10 Communication Interfaces (NT-Q Board)
PARALLEL
PARALLEL
RS-485
RS-485
GENERATOR
+12V
CONTACT
GND
ETHERNET
ADAPTER
RS-232
REMOTE
E.P.O.
DRY CONT. #5
DRY CONT. #6
DRY CONT. #1
DRY CONT. #2
DRY CONT. #4
DRY CONT. #3
CNQ14
CNQ15
CNQ16
CNQ12
CNQ 4
CNQ 5
CNQ13
CNQ17
CNQ 2
CNQ 9
CNQ 7
CNQ 8
-- Dry contact 1烉 UPS normal
-- Dry contact 2烉
Load on reserve
-- Dry contact 3烉
Load on battery
-- Dry contact 4烉
Battery low voltage
-- Dry contact 5烉
Reserve abnormal
-- Dry contact 6烉
Battery test fail
-- Remote E.P.O.
-- RS-232 port
-- Ethernet port
-- Ethernet power
-- Generator contact
-- RS-485 port
-- RS-485 port
-- UPS parallel communication port
-- UPS parallel communication port
