Delta NT Series - 100 Kva (Input: 480 Vac; Bypass: 208; 120 Vac; Output: 208; 120 Vac)

31
Ultron NT Series
4.3.3 100kVA (Input: 480Vac; Bypass: 208/ 120Vac; Output:
208/ 120Vac)

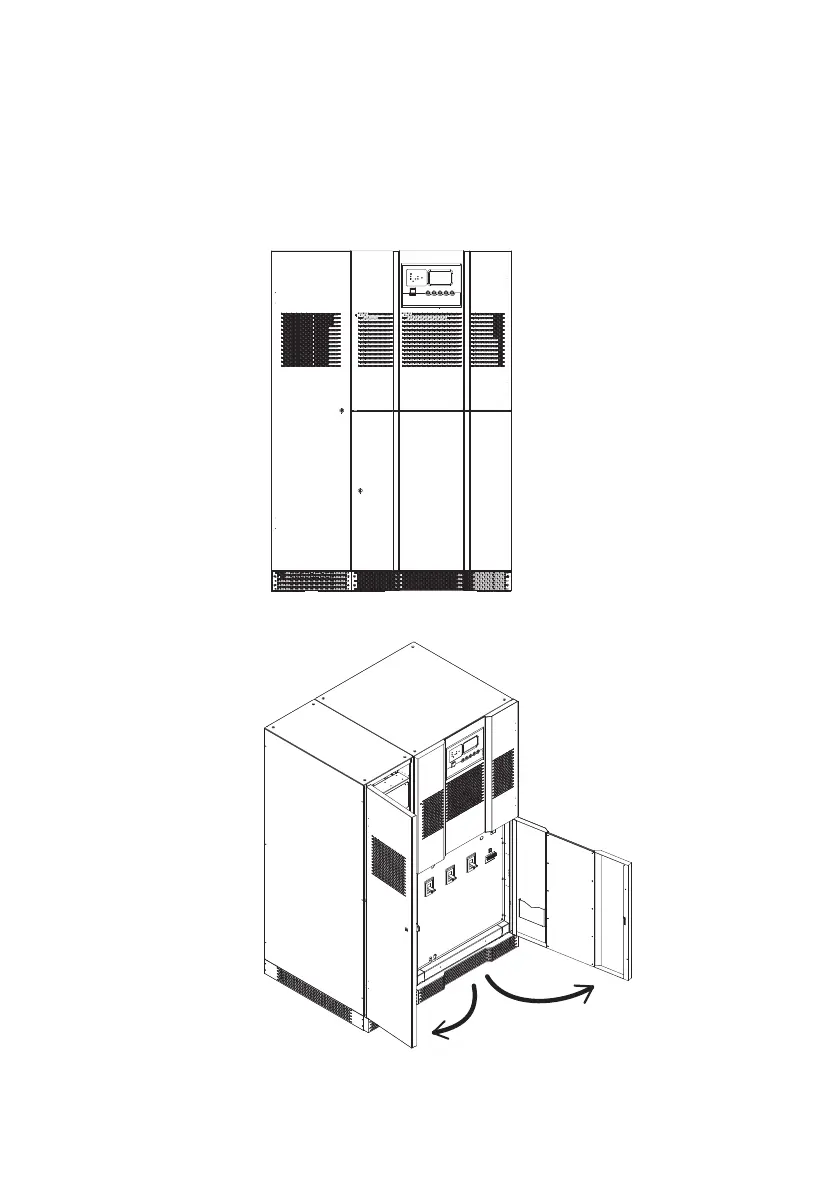

Figure 4-22 Front view: LCD control Panel.
Figure 4-23 Lateral view: open the front doors.
Figure 4-22
Figure 4-23
2
1
open the
front doors
