Delta NT Series - Page 37

Chapter 4 Installation & Wiring
32

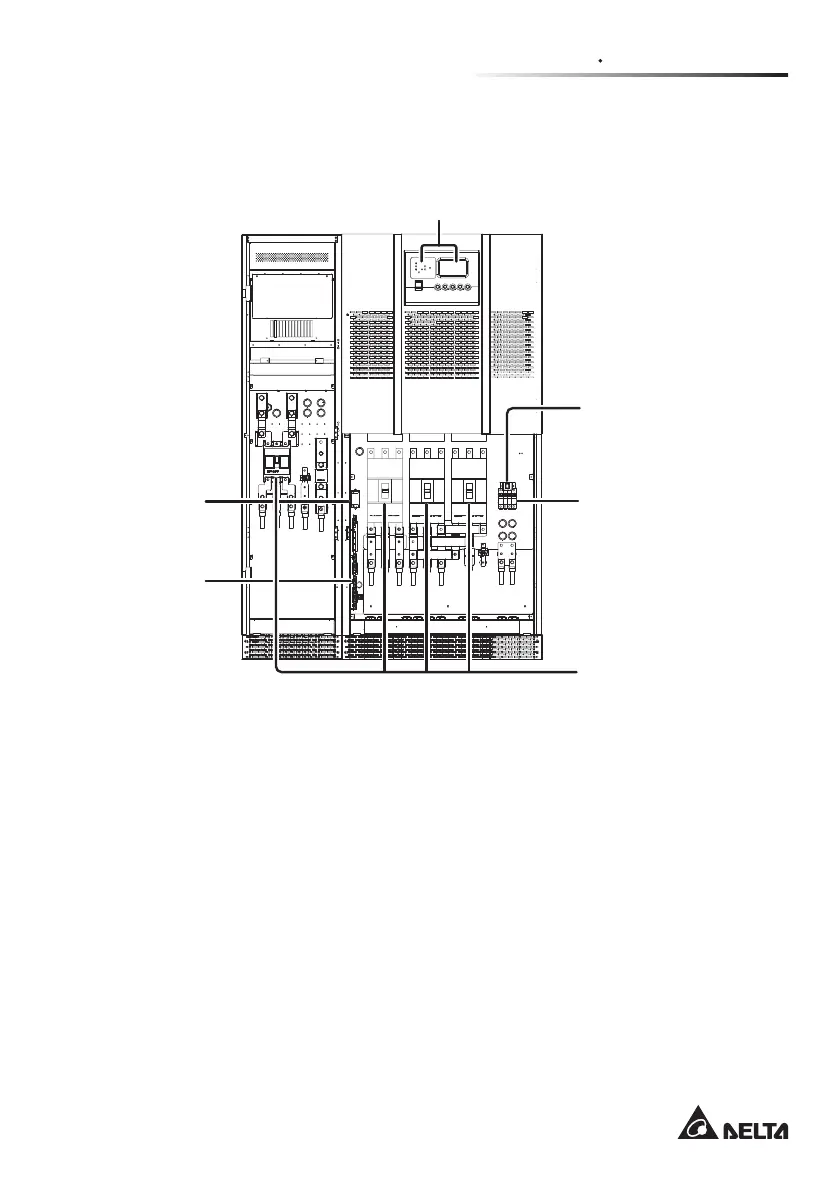

Figure 4-24 Front view with door open: one battery start-up switch, four fuses,
four breakers, one SMART slot, and communication interfaces (NT-Q
board).
Figure 4-24
SMART slot
Communication
interfaces
(NT-Q board)
LCD control panel
Fuses
(From left to right)
1. Transformer fan fuse
2. Heat sink fan fuse
3. PCB power fuse
4. Power fuse
Battery start-up switch
Breakers
(From left to right)
1. Rectifier input
2. Reserve input
3. Manual bypass
4. UPS output
