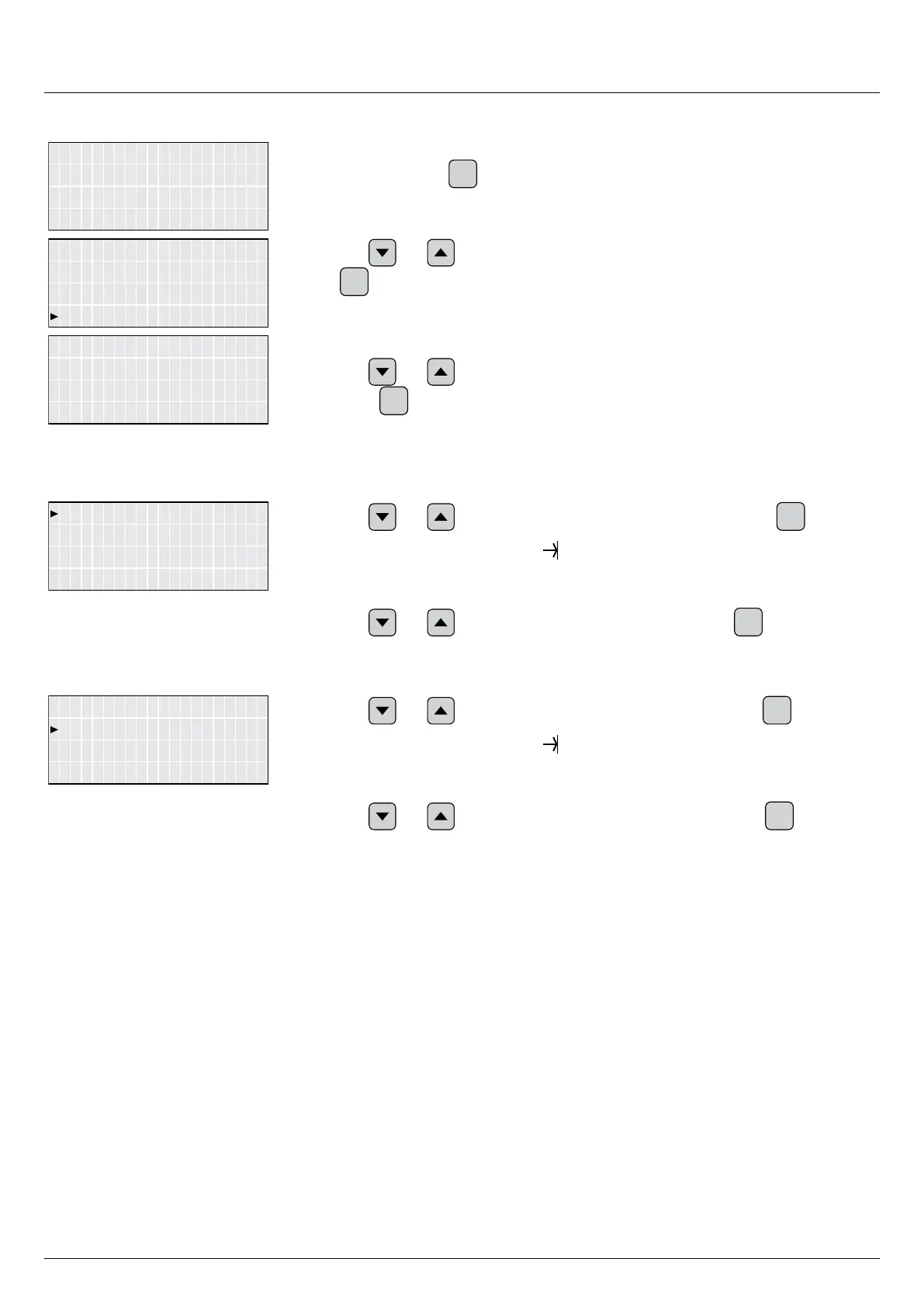

8 Settings
Calling up the menu item
E-Today: 0kWh
Power: 0W
Status: On Grid
10.Sep 2014 15:32
1. If the default information is displayed, press any button to open the main menu.
Otherwise, press the
EXIT
button repeatedly until the main menu is displayed.
Inverter Info.
General Settings
Install Settings
Active/Reactive Pwr
FRT
2. Use the and buttons to select the Active/Reactive Pwr entry and then press
the
ENT
button.
Password 0 * * *
energy production.
Adj. would affect
Warning:
3. This function is protected with password 5555.
Use the
and buttons to set the individual numerals.
Press the
ENT
button to confirm a number.
Setting the mode
t1: 0.30s
Vdrop: 0%
Dead band: -10%
Mode: ON
4. Use the and buttons to select the Mode entry and then press the
ENT
button.
→ The shape of the arrow changes
, the value can be changed.
The currently set mode is displayed after the entry.
5. Use the and buttons to select a mode and then press the
ENT
button.
Changing the settings
t1: 0.30s
Vdrop: 0%
Dead band: -10%
Mode: ON
6. Use the and buttons to select a parameter and then press the
ENT
button.
→ The shape of the arrow changes
, the parameter can be changed.
The currently set value is displayed after the entry.
7. Use the and buttons to configure the value and then press the
ENT
button.
