4 Product overview
Installation and Operation Manual for Inverter RPI M50A_12s V1 EU EN 2017-03-09
18
4.7.4 AC connection (AC OUTPUT)

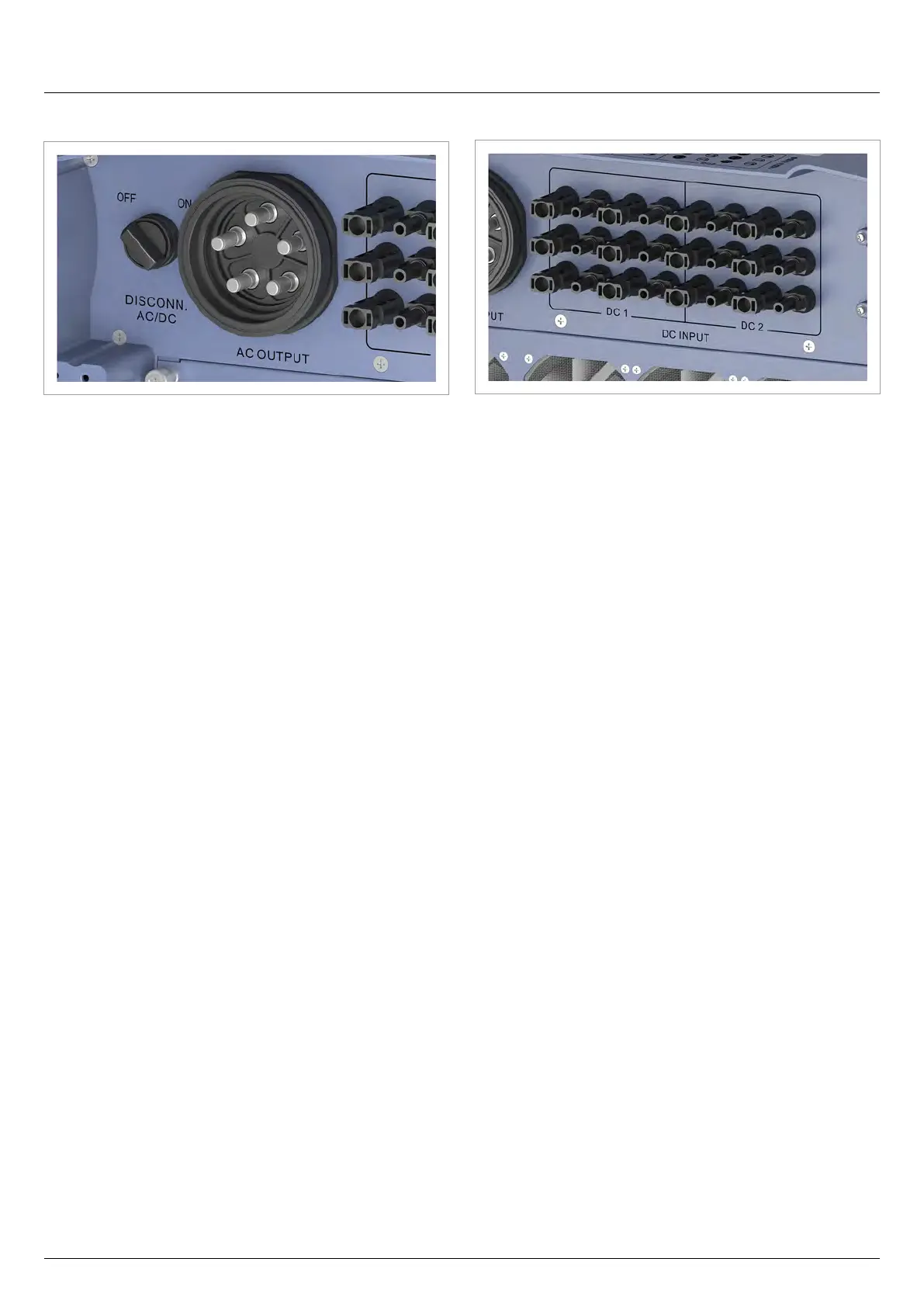

Fig. 4.13: Position of the AC connection on the inverter
The inverter is connected to the public grid via the AC connec-
tion.
Purpose:
● Feeding AC power into the public grid.
● Providing power for the display when power is not available
from the solar modules.
Grid types that can be used:
● Grids with 3 phases and a neutral conductor: 3P4W (L1, L2,
L3, N, PE)
● Mains grids with 3 phases and without a neutral conductor:
3P3W (L1, L2, L3, PE).
Plug type required:
China Aviation Optical-Electrical Technology Co. PVE5T125KE36
The AC plug is included in the scope of delivery.
4.7.5 DC connection (DC INPUT)
Fig. 4.14: Position of the DC connections on the inverter
The solar modules are connected to the DC connections.
Plug type required:
● Multi-contact MC4 32.0017P0001-UR for DC+
● Multi-contact MC4 32.0016P0001-UR for DC–
12 pairs of DC plugs are supplied in the scope of delivery.
