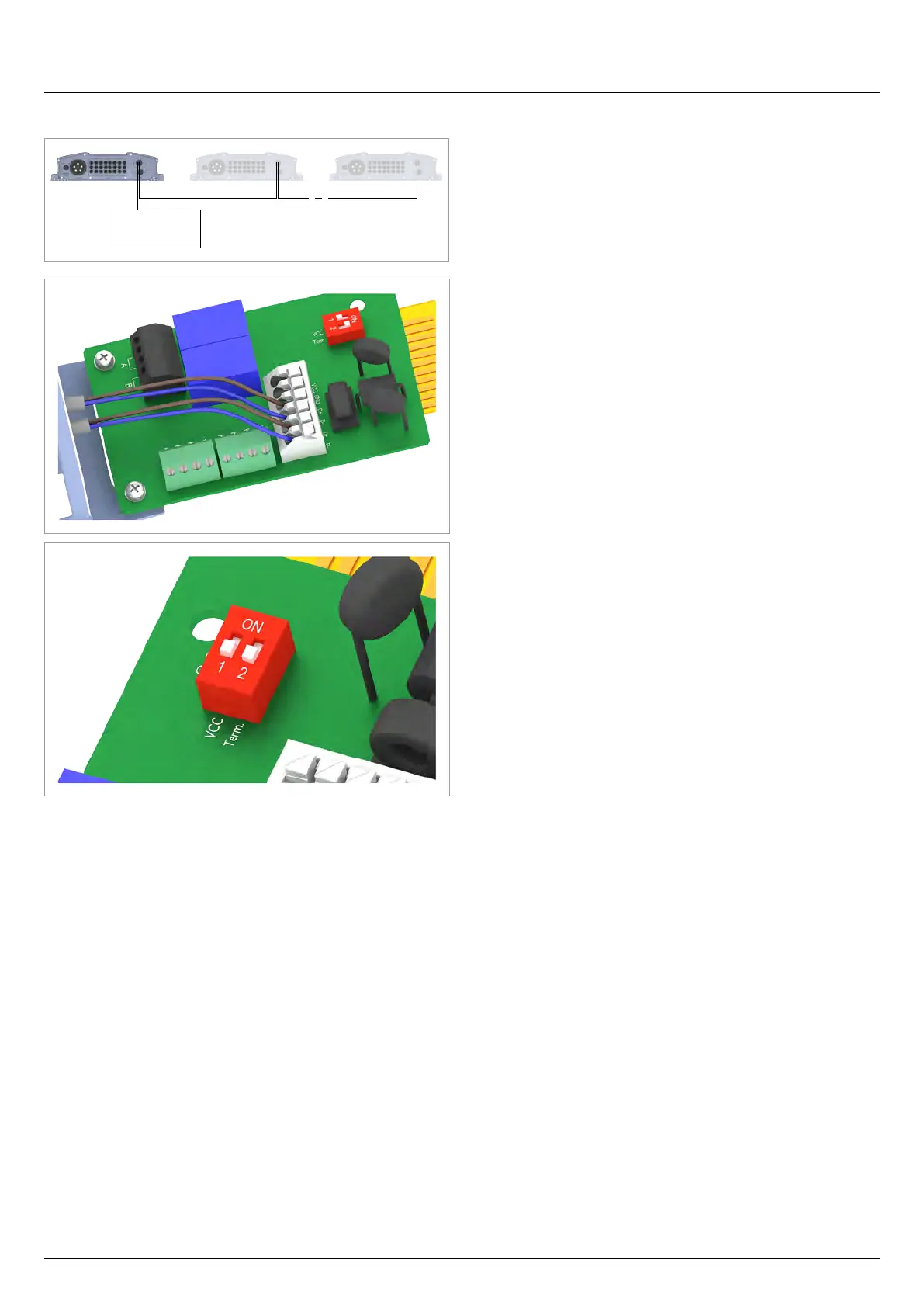

6.5.3.2 Wiring for multiple inverters
...
Data logger
1. On the cable coming from the data logger: Connect the
DATA+ wire to terminal 5 and the DATA– wire to terminal 6.
On the cable going to the second inverter: Connect the
DATA+ wire to terminal 3 and the DATA– wire to terminal 4.
2. Put the DIP switch for the RS485 termination resistor
(DIP 2) in the OFF position.
