4 Product overview
4.7.6 Communication port 1

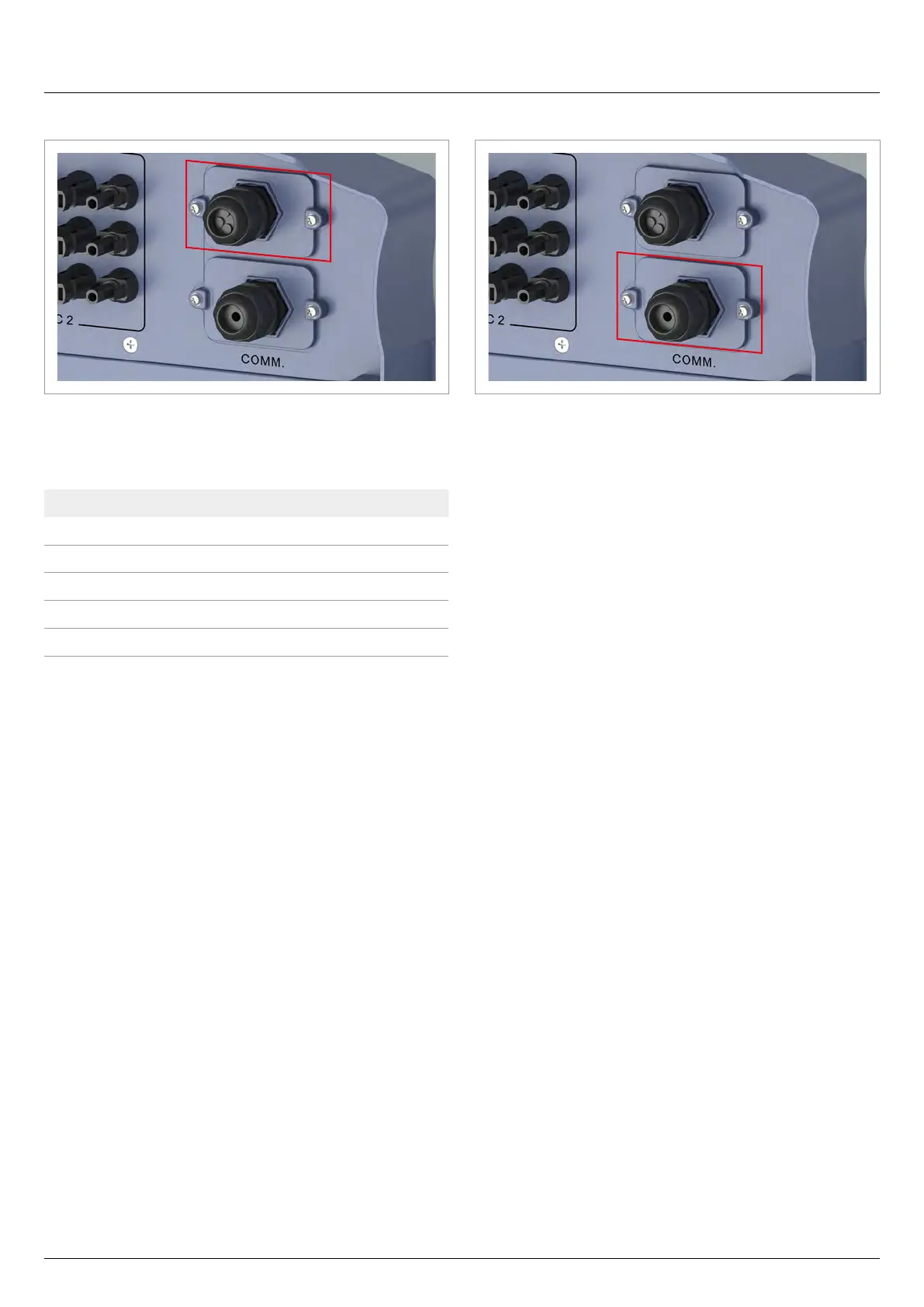

Fig. 4.15: Position of communication connection 1 on the
inverter
Available connections:
Connection Connection type
2x RS485 (DATA+ and DATA–) Terminal block
1x VCC (12 V, 0,5 A) Terminal block
6x digital inputs Terminal block
2x dry contacts Terminal block
1x external power-off (EPO) Terminal block
4.7.7 Communication port 2
Fig. 4.16: Position of communication connection 2 on the
inverter
Communication connection 2 is not used on this inverter.
