6 Installation
Installation and Operation Manual for Inverter RPI M50A_12s V1 EU EN 2017-03-09
70

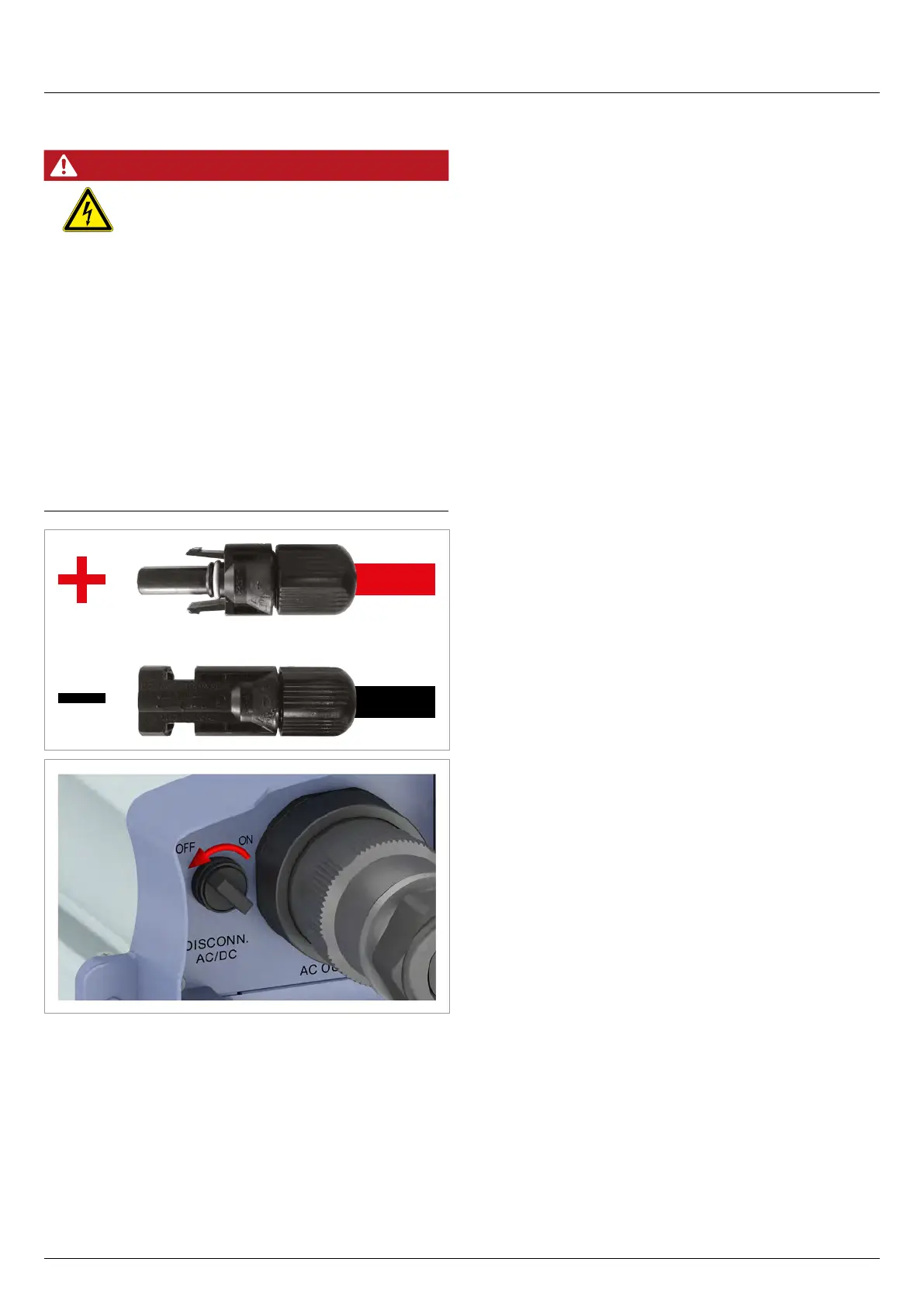

6.7 Connecting solar modules (DC)
DANGER
Electrical shock
Potentially fatal voltage is present at the invert-
er's DC connections. When light falls on the solar
modules, they immediately start to generate
electricity. This also happens when light does not
fall directly on the solar modules.
► Never disconnect the inverter from the solar
modules when it is under load.
► Turn the AC/DC disconnector to the OFF
position.
► Disconnect the connection to the grid so that
the inverter cannot supply energy to the grid.
► Disconnect the inverter from all AC and DC
voltage sources. Ensure that none of the con-
nections can be restored accidentally.
► Ensure that the DC cables cannot be touched
accidentally.
1. Use a red cable for DC+ and a black cable for DC–.
Use a voltmeter to check the polarity.
2. Turn the AC/DC disconnector to the OFF position.
