33
Installation and Operation Manual for Inverter RPI M50A_12s V1 EU EN 2017-03-09
5 Planning installation
5.7.2 Separately connected and parallel-con-
nected DC inputs
The inverter can be operated with separately connected and
parallel-connected DC inputs.
Separately connected DC inputs
DC wiring
PV array

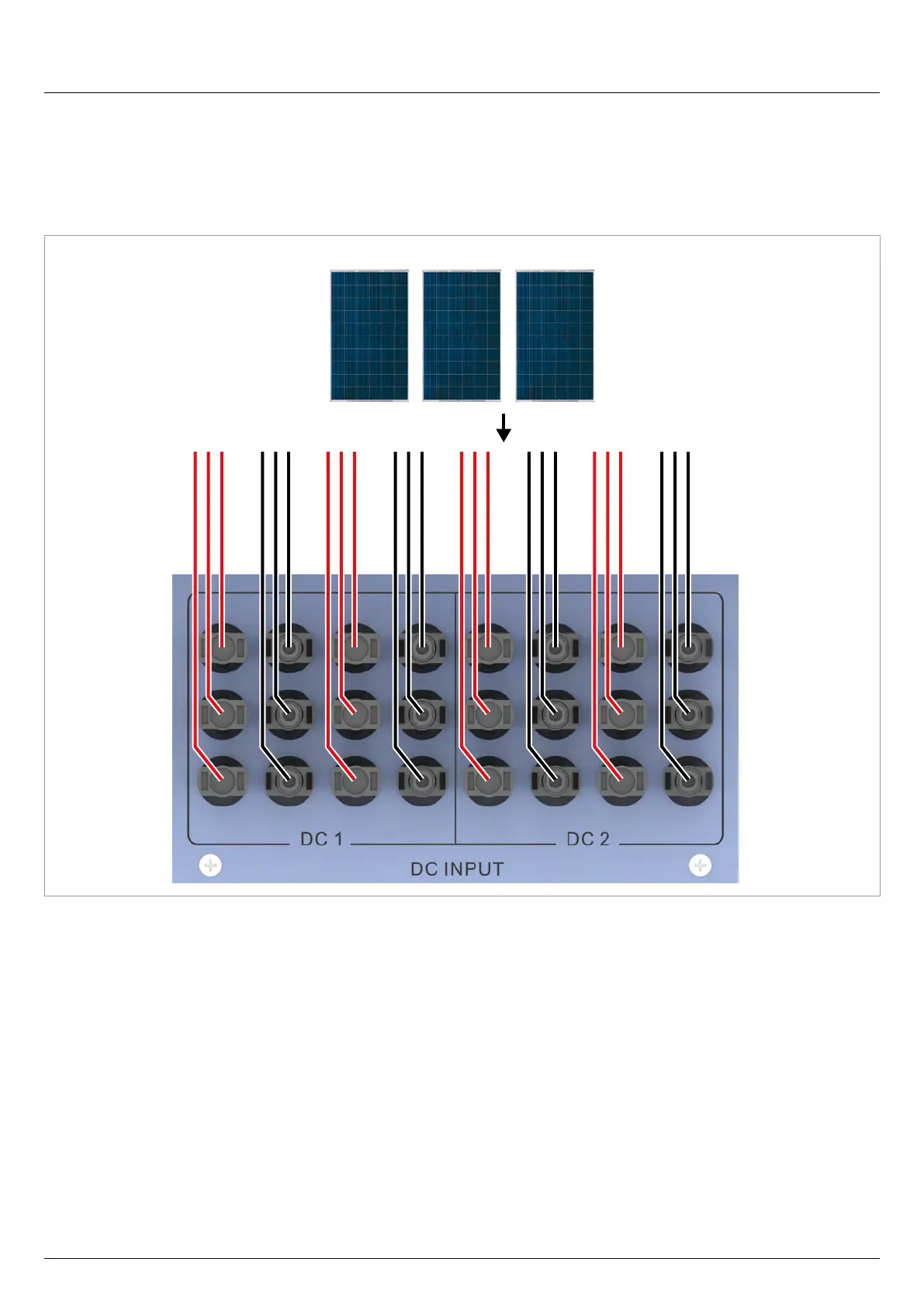

Fig. 5.10: Separately connected DC inputs
The module strings for DC1 and DC2 are connected sepa-
rately. MPP tracker 1 regulates the module strings at DC1, MPP
tracker 2 regulates the module strings at DC2.
This allows implementation of symmetric and asymmetric config-
urations at the DC inputs.
This DC cabling variant cannot be used with grounded solar
modules.
