Delta RPI M50A Installation And Operation Manual

67
Installation and Operation Manual for Inverter RPI M50A_12s V1 EU EN 2017-03-09
6 Installation
22 ± 2 mm
95 mm
+0
-5
95 mm
+0
-5

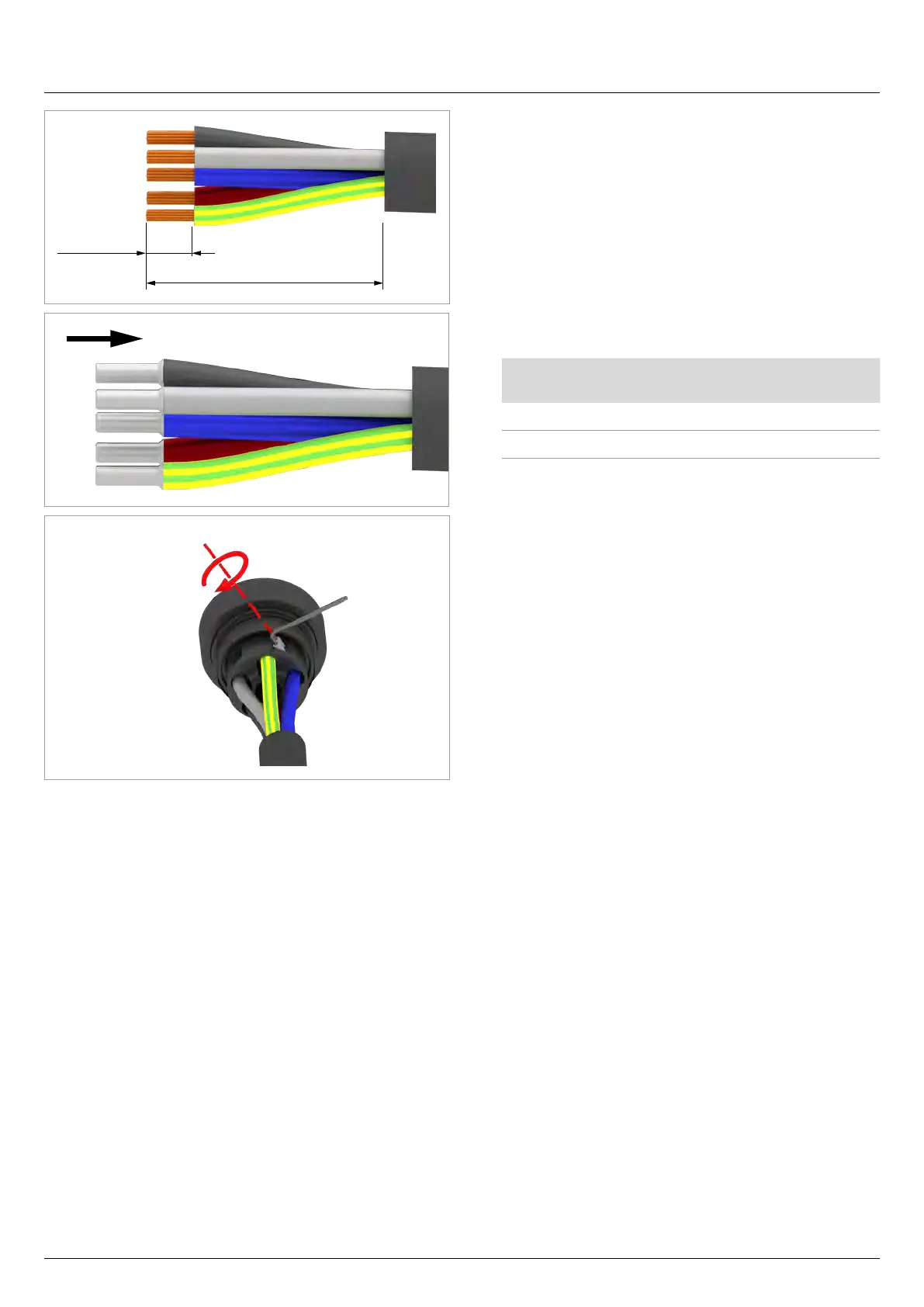

2. Remove the insulation from the cable and wires. Do not
twist the wire ends because this reduces the contact sur-
face area with the wire end sleeves.
3. Wire end sleeves must be used with some wire cross-sec-
tions, see the following table.
Conductor cross-
section
Use wire end-sleeves?
25 mm
2
Yes
> 25 mm
2
No
3 Nm
2 x
4. There are two connecting screws per conductor. Always
fasten all wires with both connecting screws.

Delta RPI M50A Specifications

General

Brand	Delta
Model	RPI M50A
Category	Inverter
Language	English
