Delta VFD-B Series

Chapter 5 Parameters|VFD-B-P Series
Revision April 2009, SW V1.00 5-103
11 - 04 Time Delay before Stopping the Auxiliary Motor Unit: 0.1
Settings 0.0 to 3600.0 sec Factory Setting: 0.0
 The number of Multi-function Output terminals set to 16, 17, 18 decides the number of auxiliary
motors. The maximum is three.
 The start/stop delay time can prevent the AC motor drive from overloaded during
starting/stopping.
 These parameters determine the starting sequence of auxiliary motors.
The auxiliary motor started first will be stopped first.
Example: Start sequence: motor 1 -> motor 2 -> motor 3
Stop sequence: motor 1 -> motor 2 -> motor 3

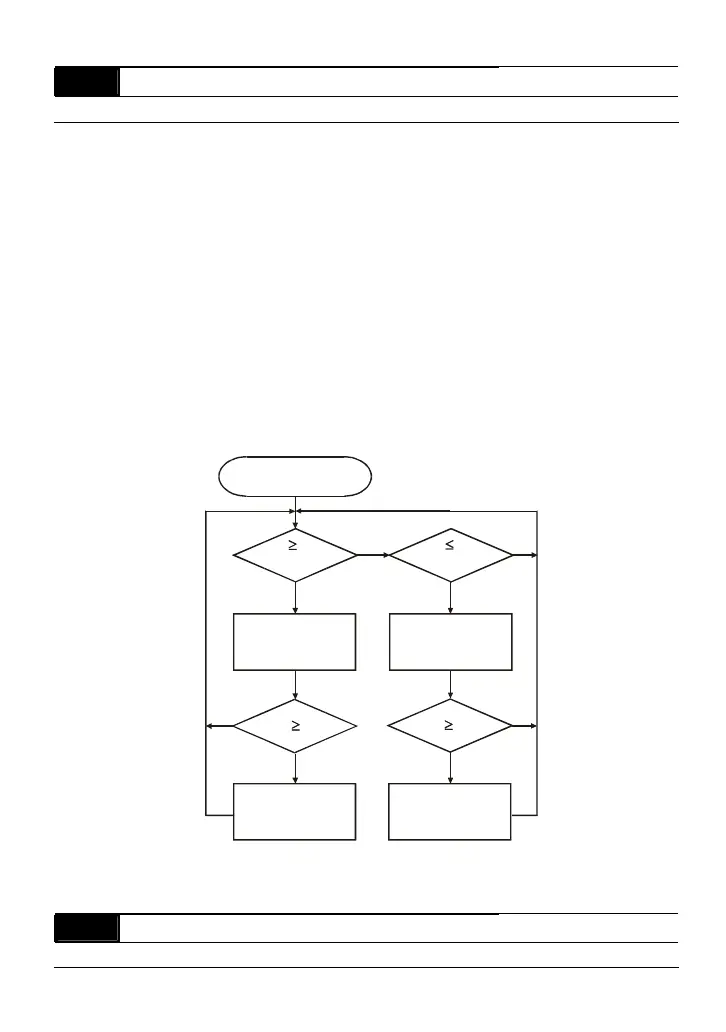

 The flowchart of auxiliary motor start/stop sequence:
Pr.11-01 Start-up frequency = 50 Hz, Pr.11-02 Stop frequency = 20 Hz
Pr.11-03 Time delay before start up = 10 sec, Pr.11-04 Time delay before stopping = 5 sec
H
50
11-03
H 20
11- 04
Output frequency of
master motor
Output Freq.
Output Freq.
NO NO
NO
NO
Start delay timer
of auxiliary
motor begins
Stop delay timer
of auxiliary
motor begins
Counter
10 sec
Counter 5 sec
Start the
auxiliary motor
in order
Stop the
auxiliary motor
in order
YES
YES
YES
YES
11 - 05 Sleep/Wake Up Detection Time Unit: 0.1
Settings 0.0 to 6550.0 sec Factory Setting: 0.0
