Delta VFD-B Series User Manual

Chapter 5 Parameters|VFD-B-P Series
5-104 Revision April 2009, SW V1.00
11 - 06 Sleep Frequency Unit: 0.01
Settings 0.00 to Fmax Hz Factory Setting: 0.00
11 - 07 Wakeup Frequency Unit: 0.01
Settings 0.00 to Fmax Hz Factory Setting: 0.00

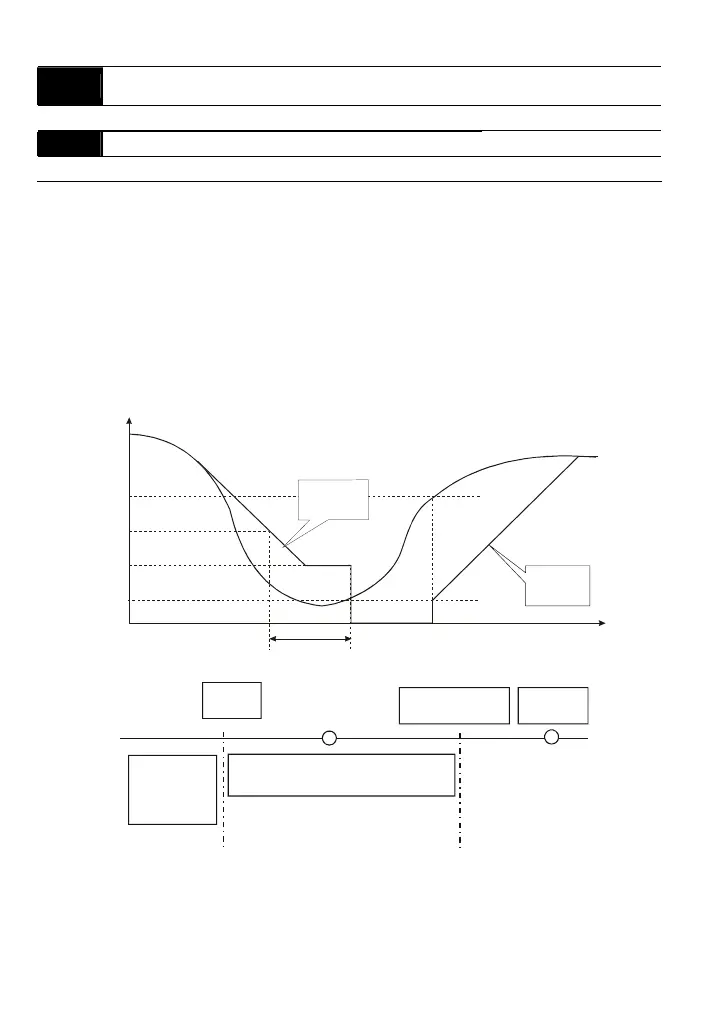

 When the actual output frequency < Pr.11-06 and the time exceeds the setting of Pr.11-05, the
AC motor drive will be in sleep mode.
 When the actual frequency command > Pr.11-07, the AC motor drive will restart.
 When the AC motor drive is in sleep mode, frequency command is still calculated by PID.
When frequency reaches wake up frequency, AC motor drive will accelerate from Pr.01-05 min.
frequency by V/f curve.
 The wake up frequency must be higher than sleep frequency.
11-07
11-06
01-08
01-05
11-05
Frequency
The limit of
decel. time
frequency calculated by PID
output
frequency
Time
The limit of
accel. time
Fmin
Fsleep
Fcmd=0
Fout = 0
lower bound
of frequency
Fmin<Fsleep<
lower bound
of frequency
 When output frequency < sleep frequency and time > detection time, it will go into sleep mode.
 When min. output frequency ≦lower bound of frequency, PID frequency ≧min. output
frequency and sleep function is enabled (output frequency < sleep frequency and time >

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
