Delta VFD-B Series User Manual

Appendix B Accessories|VFD-B-P Series
B-28 Revision April 2009, SW V1.00

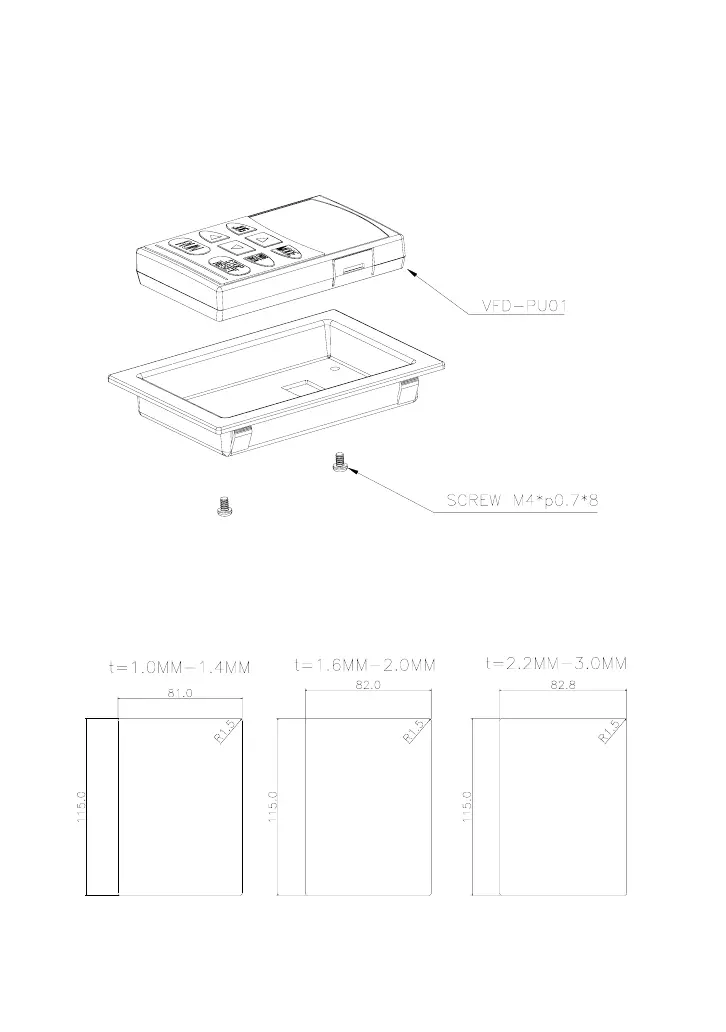

B.5 Remote Panel Adapter (RPA 01)
Remote panel adapter for VFDPU01
Mounting hole dimensions (Dimensions are in millimeter)
Following is the mounting hole dimension of the plate for RPA01. Please choose the applicable
one from below, depending on the plate thickness (t).

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
