Appendix B Accessories|VFD-B-P Series
Revision April 2009, SW V1.00 B-27
B.4 Remote Controller RC-01

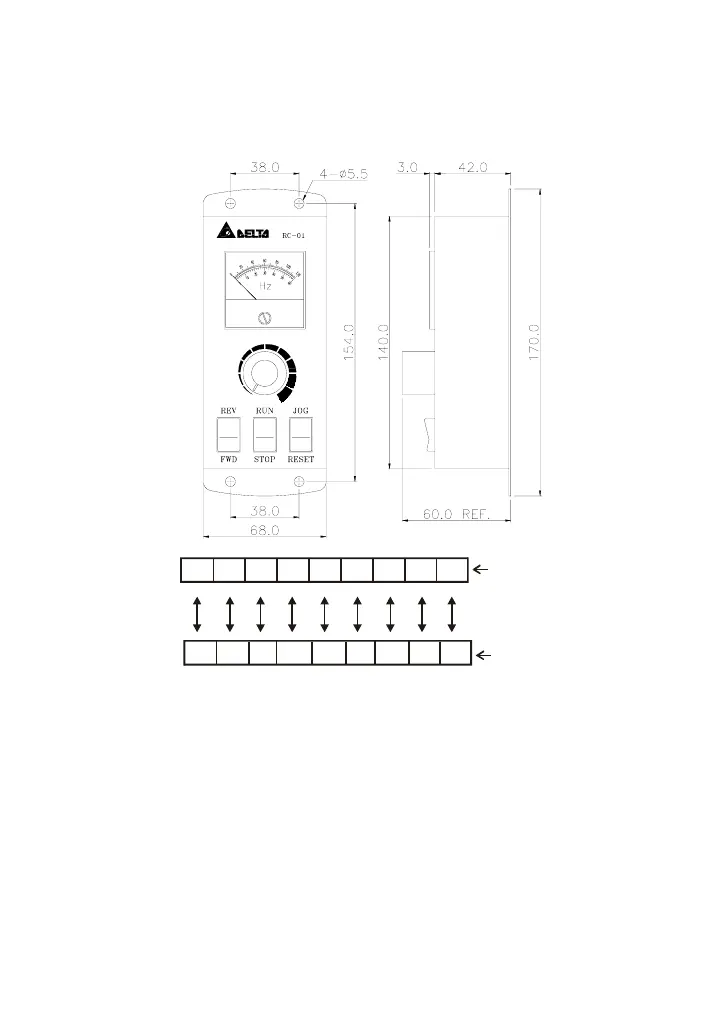

Dimensions are in millimeter
AFMACM +10VAVI DCMMI5 FWD REV JOG
86
5
41615141311
RC-01
Term in al
block
(Wiring
connections)
VFD-B
I/O
Block
VFD-B-P Programming:
Pr.02-00 set to 1
Pr.02-01 set to 1 (external controls)
Pr.02-05 set to 1 (setting Run/Stop and Fwd/Rev controls)
Pr.04-08 (MI5) set to 05 (External reset)
NOTE: It needs to set the switch SW1 to SINK mode.
