Delta VFD-B Series User Manual

Chapter 2 Installation and Wiring|VFD-B-P Series
Revision April 2009, SW V1.00 2-11

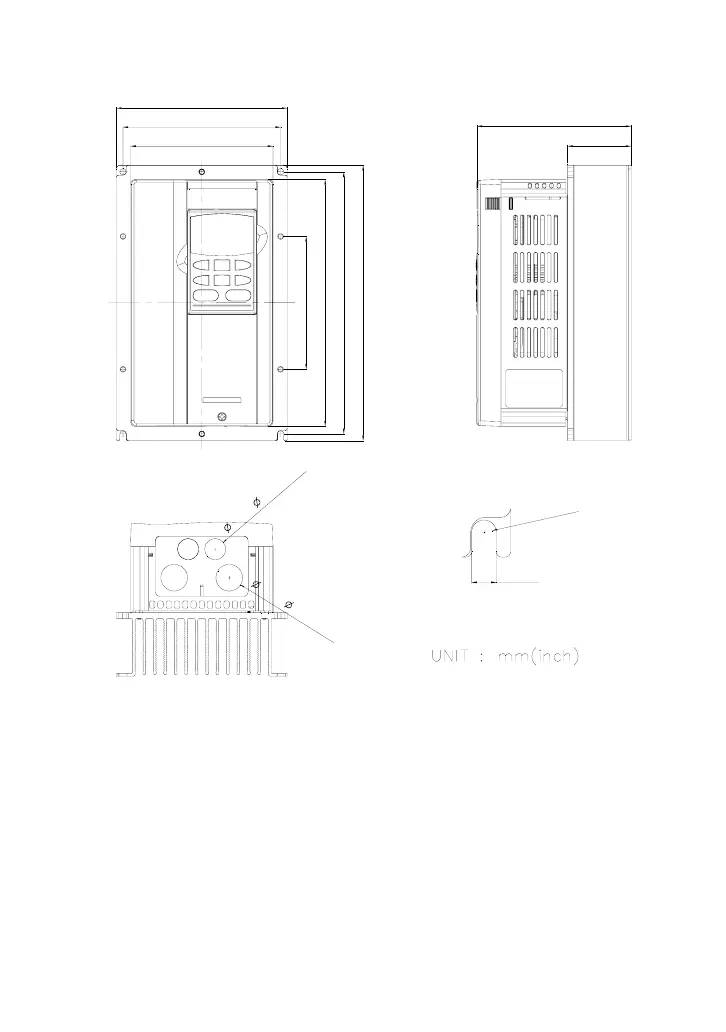

VFD037B43P-B
150.0 [5.91]
260.0 [10.24] 290.0 [11.42]
180.0 [7.09]
166.0 [6.54]
140.0 [5.51]
276.0 [10.87]
162.6 [6.40]
67.0 [2.64]
R
3
.
2
5
[
0
.
1
3
]
6.5[0.26]
28
.
0
[ 1.
1
0
]
(
2
X
)
2
2
.
0
[
0
.
8
7
]
(
2
X
)

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
