Delta VFD-B Series User Manual

Chapter 2 Installation and Wiring|VFD-B-P Series
2-12 Revision April 2009, SW V1.00

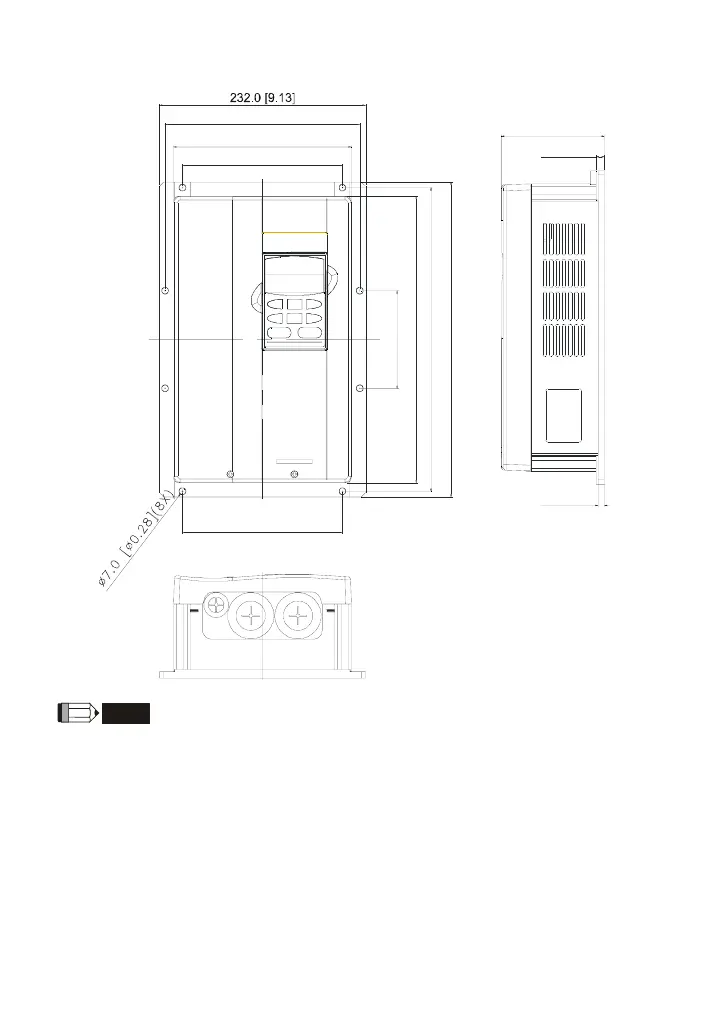

VFD055B43P, VFD075B43P, VFD110B43P, VFD150B43P
3
5
5
.
0
[
1
3
.
9
8
]
3
2
3
.
0
[
1
2
.
7
2
]
3
4
2
.
0
[
1
3
.
4
6
]
219.0 [8.62]
180.0 [7.09]
1
1
0
.
0
[
4
.
3
3
]
200.0 [7.87]
180.0 [7.09]
7.1 [0.28]
116.0 [4.57]
9.3 [0.37]
NOTE
This is only the dimension of the AC motor drive and it needs to be used with a capacity module to
be a complete product.

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
