Delta VFD-B Series User Manual

Chapter 2 Installation and Wiring|VFD-B-P Series
2-14 Revision April 2009, SW V1.00
Capacity modules
VFD055B43P; VFD055B43P-C/-C1
VFD075B43P; VFD075B43P-C/-C1
VFD110B43P; VFD110B43P-C/-C1
VFD150B43P; VFD150B43P-C/-C1
DC( -)
BLACK
DC( +)
Co nn ec t to + 1
RE D
Co nn ec t t o

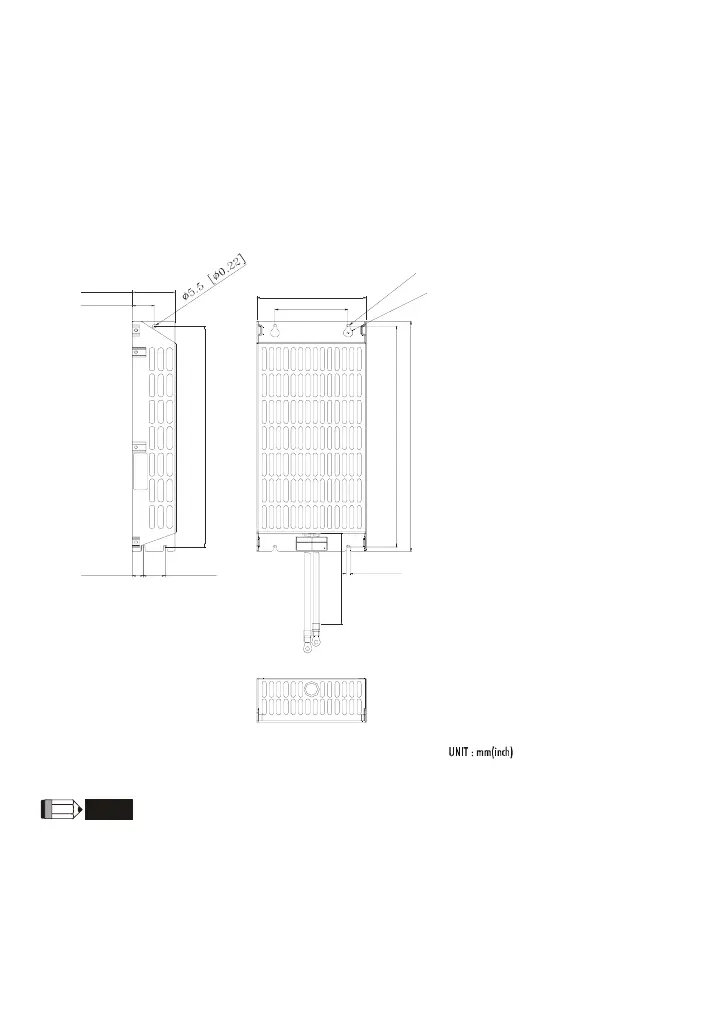

30.0 [1.18]
58.8 [2.31]
R
2
.
8
[
R
0
.
1
1
]
R
6
.
3
[
R
0
.
2
5
]
350.0[13.78](min)
15.0 [0.59] 30.0 [1.18]
315.0 [12.40]
302.0 [11.89]
5.5 [0.22]
150.0 [5.91]
100.0 [3.94]
302.0 [11.89]
NOTE
1. This is only the dimension for the capacity module, it needs to be used with an AC motor drive to be a
complete product.
2. VFDXXXB43P-C: frame C with heatsink type C0 (this type is only for China market).
VFDXXXB43P-D: frame D with heatsink type D0 (this type is only for China market).
VFDXXXB43P-C1: frame C with heatsink type C1 (this type is only for China market).
VFDXXXB43P-D1: frame D with heatsink type D1 (this type is only for China market).

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
