Delta VFD-B Series User Manual

Chapter 2 Installation and Wiring|VFD-B-P Series
Revision April 2009, SW V1.00 2-17
Capacity modules
VFD185B43P; VFD185B43P-D/-D1
VFD220B43P; VFD220B43P-D/-D1
VFD300B43P; VFD300B43P-D/-D1
VFD370B43W-P; VFD370B43P-D
3
9
8
.
0
[
1
5
.
6
7
]
3
8
2
.
0
[
1
5
.
0
4
]
3
8
2
.
0
[
1
5
.
0
4
]

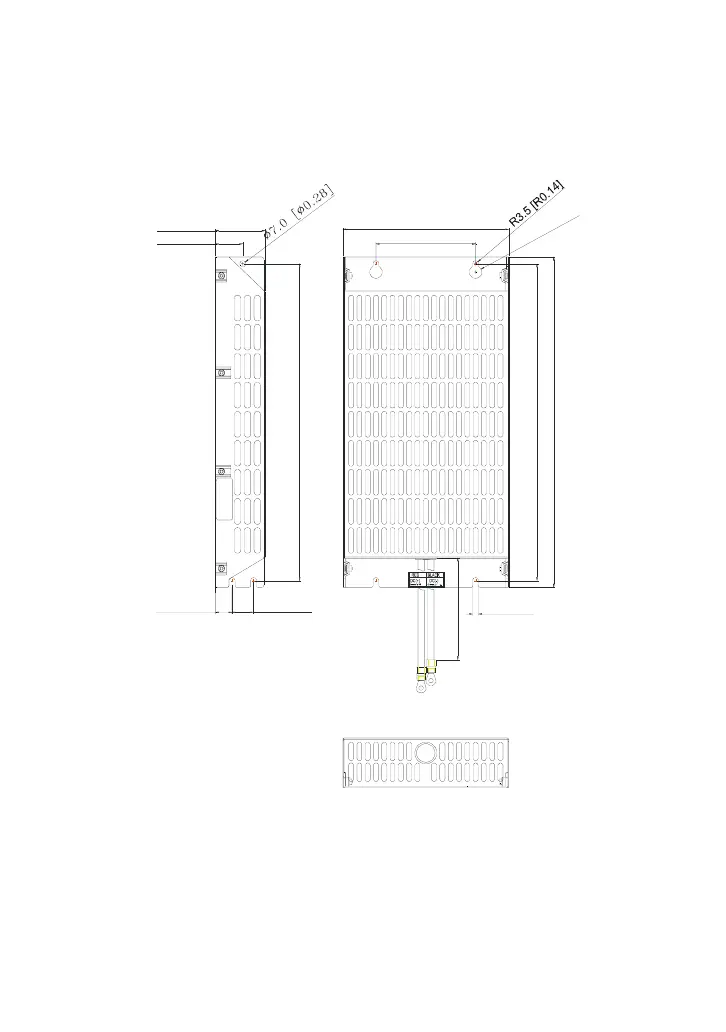

20.0 [0.79] 26.0 [1.02]
7.0 [0.28]
120.0 [4.72]
200.0 [7.87]
33.0 [1.30]
60.0 [2.36]
R
7
.
5
[
R
0
.
3
0
]
3
5
0
.
0
[
1
3
.
7
8
]
(
m
in
)

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
