Delta VFD-B Series User Manual

Chapter 2 Installation and Wiring|VFD-B-P Series
2-18 Revision April 2009, SW V1.00

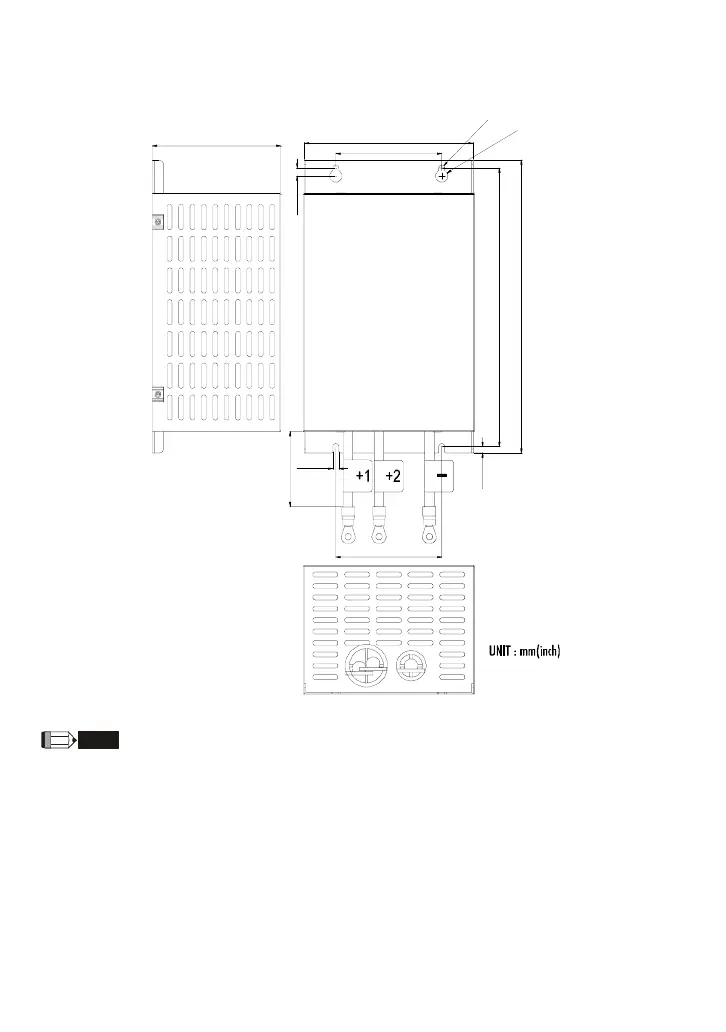

Capacity modules
VFD450B43W-P; VFD450B43P-D
R
7
.5
[
R
0
.
3
0
]
342.5 [13.48]
36 0. 0 [14.17]
500[1 6.69]
7.0 [0.28]
130.4 [5.13]
8.0 [0.31]
158.0 [6.22]
10.0 [0.39]
208.0 [8.19]
130.4 [5.13]
R
3
.
5
[
R0
.
1
4
]
NOTE
1. This is only the dimension for the capacity module, it needs to be used with an AC motor drive to be a
complete product.
2. VFDXXXB43P-C: frame C with heatsink type C0 (this type is only for China market).
VFDXXXB43P-D: frame D with heatsink type D0 (this type is only for China market).
VFDXXXB43P-C1: frame C with heatsink type C1 (this type is only for China market).
VFDXXXB43P-D1: frame D with heatsink type D1 (this type is only for China market).

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
