Delta VFD-B Series User Manual

Chapter 2 Installation and Wiring|VFD-B-P Series
2-34 Revision April 2009, SW V1.00

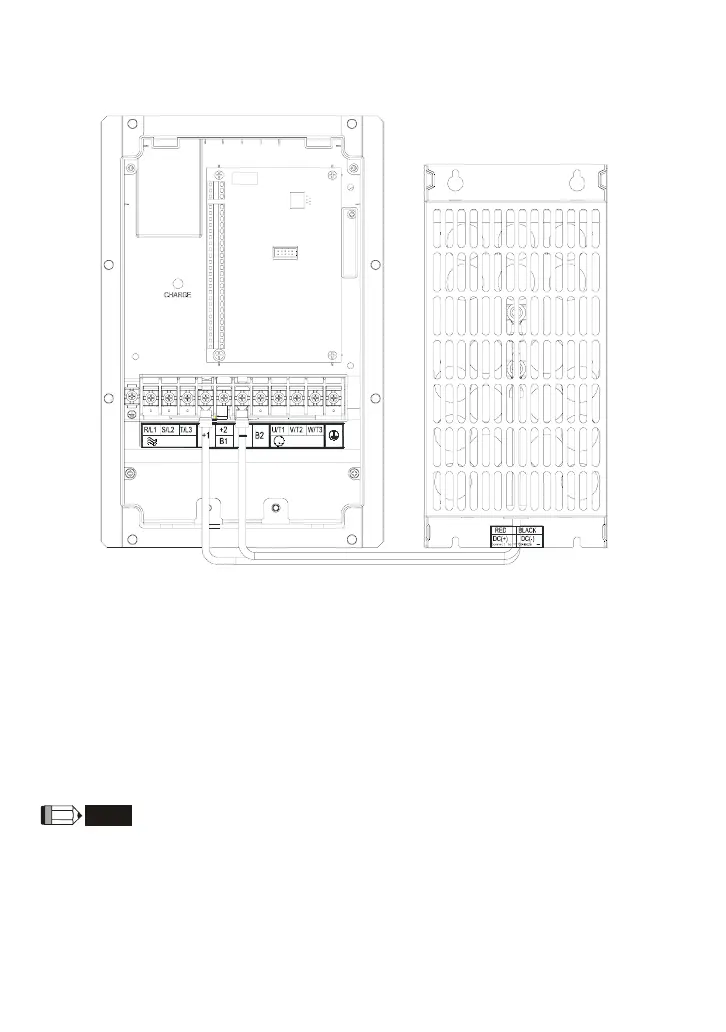

7.5HP to 20HP (5.5-15kW)
VFD055B43P, VFD075B43P, VFD110B43P, VFD150B43P
IM
3 MOTORPOWER
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2mm
2
)
Power Terminal
Torque: 30Kgf-cm (26 in-lbf)
Wire: 8-12 AWG (8.4-3.3mm
2
)
Wire Type: Stranded Copper only, 75°C
NOTE
To connect 6 AWG (13.3 mm
2
) wires, use Recognized Ring Terminals

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
