Chapter 2 Installation and Wiring|VFD-B-P Series
Revision April 2009, SW V1.00 2-35

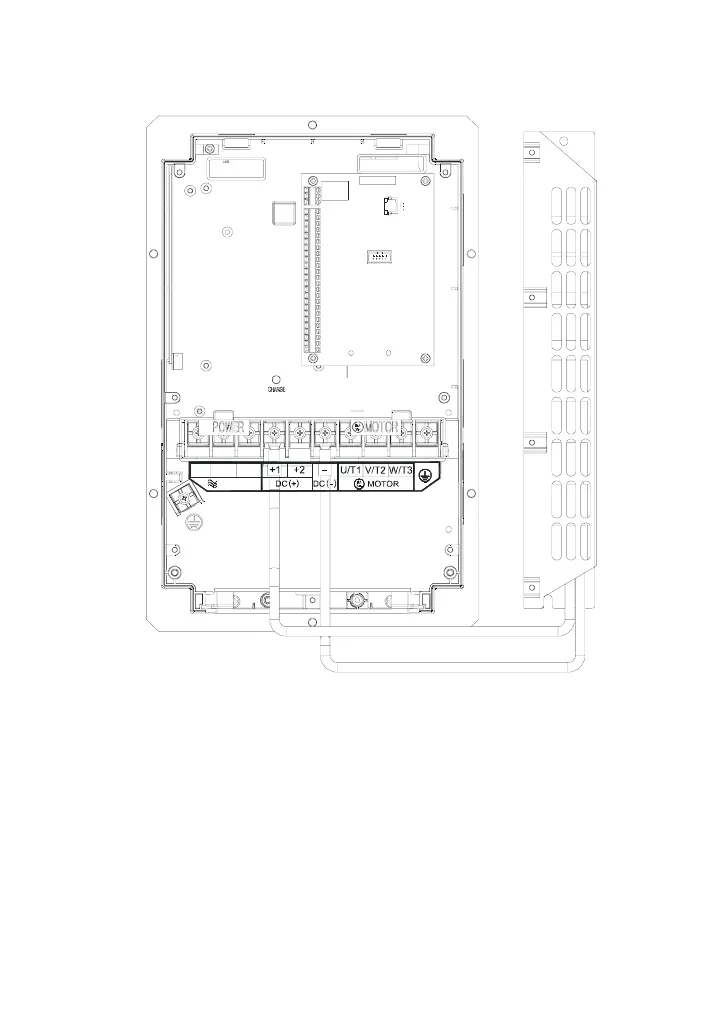

25 HP to 50 HP(18.5-37kW)
VFD185B43P, VFD220B43P, VFD300B43P, VFD370B43W-P
R/L1
POWER
T/L3S/L2
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2 mm
2
)
Power Terminal
Torque: 30Kgf-cm (26 in-lbf)
Wire: 2-8 AWG (33.6-8.4 mm
2
)
To Next Page
