Delta VFD-B Series User Manual

Chapter 2 Installation and Wiring|VFD-B-P Series
2-36 Revision April 2009, SW V1.00

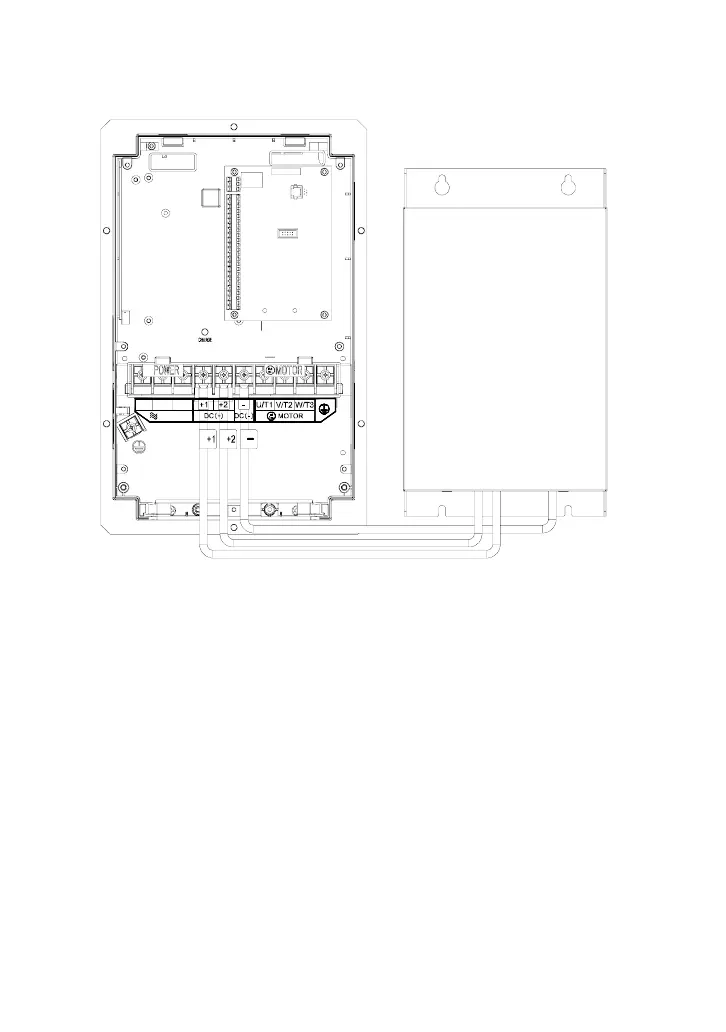

60 HP(45kW)
VFD450B43W-P
R/L1
POWER
T/L3S/L2
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2 mm
2
)
Power Terminal
Torque: 30kgf-cm (26 in-lbf)
Wire Gauge: 1- 4 AWG (42.41-21.15 mm
2
)

Delta VFD-B Series Specifications

General

Series	VFD-B
Cooling Method	Fan cooling
Overload Capacity	150% for 60 seconds
Braking Unit	Built-in
Control Mode	V/F control, Sensorless Vector Control
Communication	RS-485
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH (non-condensing)
Altitude	1000m (Derating required above 1000m)
