Delta VFD-EL-W Series User Manual

Chapter 4 Parameters｜VFD-EL-W
96
Pr.04.19 Setting
Pr.04.04 Setting

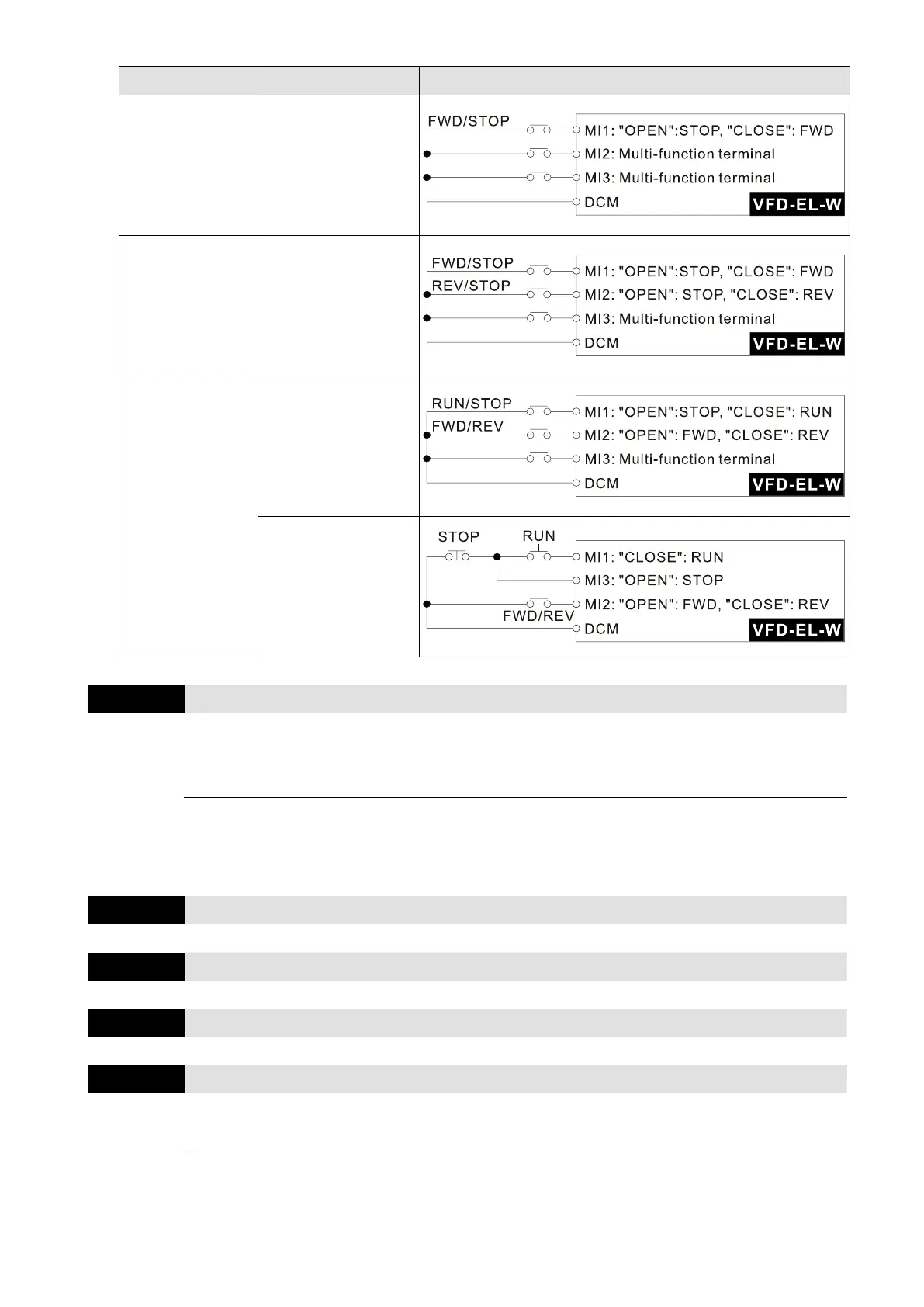

External Terminal Control Circuits
Mode 1
Pr.04.19 = 0
Pr.04.04 = 0
Single-wire operation
control
FWD / STOP
Mode 2
Pr.04.19 = 1
Pr.04.04 = 0
Two-wire operation
control
FWD / STOP, REV /
STOP
Mode 2
Pr.04.19 = 1
Pr.04.04 = 1
Two-wire operation
control
RUN / STOP, REV /
FWD
Pr.04.04 = 2
Three-wire Operation
Control
04.19
MI Terminal Control Mode Selection
Default: 0
Settings
0: Mode 1 (MI1: Start/ Stop, MI2 and MI3: multi-function input terminals)
1: Mode 2 (MI1, MI2 and MI3 support two-wire/ three-wire start-up)
 MI terminal control mode is affected by the setting for Pr.04.19 and divided into two modes.
 Mode 1: MI1 is Start/ Stop terminal; MI2 and MI3 are multi-function input terminals
 Mode 2: MI1, MI2 and MI3 support two-wire/ three-wire start-up.
04.05
Reserved
04.06
Start/ Stop or Multi-Function Input Command 1 (MI2)
Default: 1
04.07
Start/ Stop or Multi-Function Input Command 2 (MI3)
Default: 2
04.08
Multi-function Input Command 4 (MI4)
Default: 3
Settings
0–25
 Use this parameter to set the function of multi-function input terminals.
