Delta VFD-EL-W Series User Manual

Chapter 4 Parameters｜VFD-EL-W
102

04.28
Status Selection of Multi-function Input Terminal
Default: 0
Settings
0–63
 Sets the internal terminal action (ON/ OFF) through the keypad or communication. And use this
parameter with Pr.04.27.
3 2 1 0
MI1
MI2
MI3
MI4
2
3
2
2
2
1
2
0
Weight
Bit
0=External
terminal is OFF
1=Internal
terminal is ON

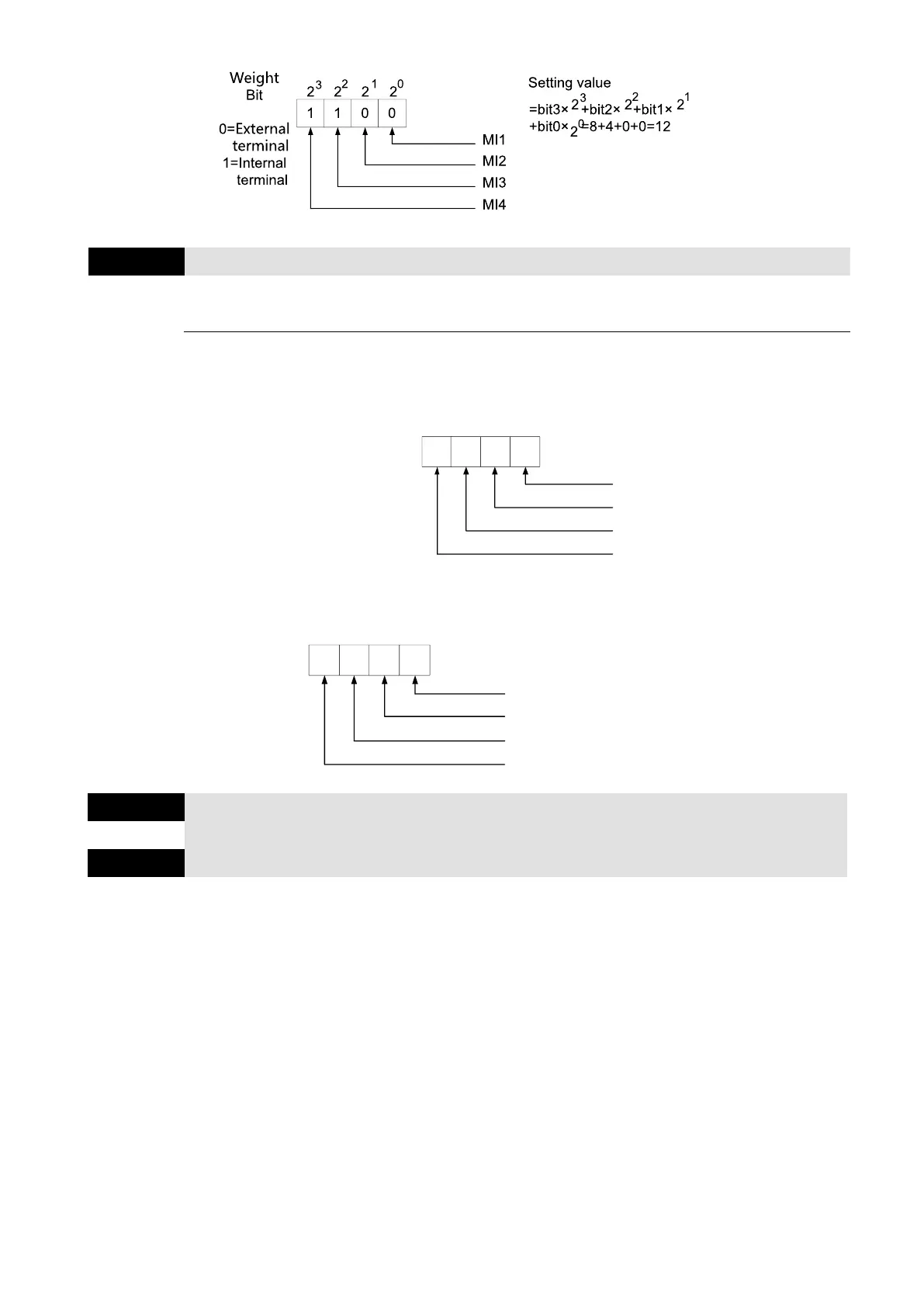

Setting method: set Pr.04.28 to 12 to activate MI3 and MI4.
1 1 0 0
MI1
MI2
MI3
MI4
Weight
Bit
0=External
terminal is OFF
1=Internal
terminal is ON
2
3
2
2
2
1
2
0
设定值
=bit3× +bit2× +bit1×
+bit0× =8+4+0+0=12
2
3
2
2
2
1
2
0
Setting value
04.20
Reserved
–
04.25
