Chapter 1 IntroductionVFD-EL-W
13

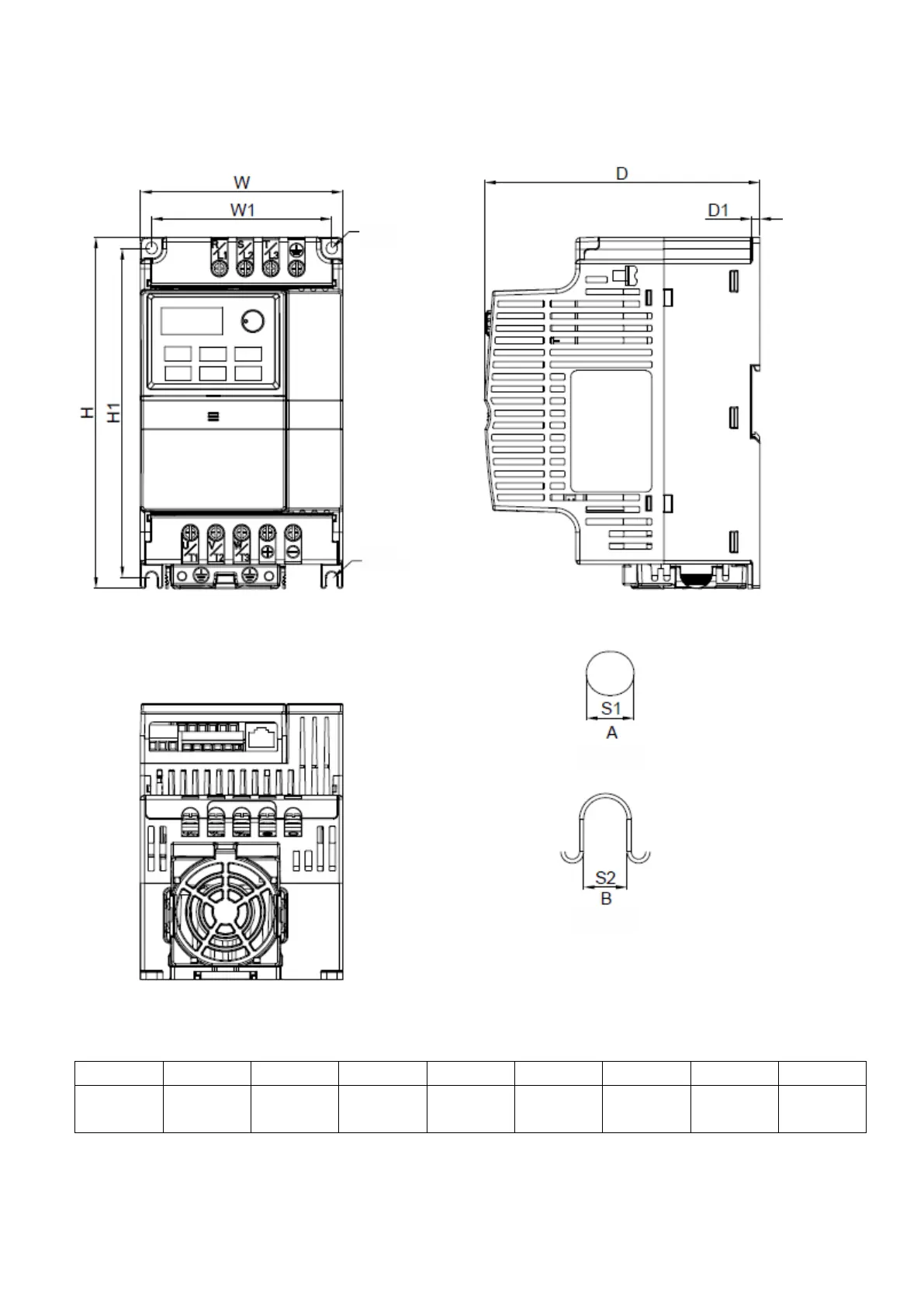

Frame B
VFD015EL21W(-1), VFD022EL21W(-1), VFD022EL43W(-1), VFD040EL43W(-1), VFD055EL43W(-1)
See B
See A
(mounting hole)
(mounting hole)
Unit: mm (inch)
Frame
W
W1
H
H1
D
D1
S1
S2
B
100.0
(3.94)
89.0
(3.50)
174.0
(6.86)
162.9
(6.42)
136.0
(5.36)
4.0
(0.16)
5.9
(0.23)
5.4
(0.21)
