Chapter 4 Parameters｜VFD-EL-W
73
maximum output frequency will not be larger than 60 Hz even executing slip compensation. If
the output frequency must be larger than 60 Hz, adjust the output frequency upper limit or
increase the maximum operation frequency.

01.09
Acceleration Time 1

01.10
Deceleration Time 1

01.11
Acceleration Time 2

01.12
Deceleration Time 2
Default: 10.0
Settings
0.1–600.0 sec./ 0.01–600.00 sec.
 You can switch the acceleration/ deceleration time 1 or 2 by setting the external terminal MI2–
MI4 to 7.
01.19
Time Unit for Acceleration and Deceleration
Default: 0
Settings
0: Unit 0.1 sec.
1: Unit 0.01 sec.
 The acceleration time determines the time required for the AC motor drive to ramp from 0.00 Hz
to the maximum operation frequency (Pr.01.00). The deceleration time determines the time
required for the AC motor drive to decelerate from the maximum operation frequency (Pr.01.00)
down to 0 Hz.
 Select the Acceleration/Deceleration Time 1, 2, 3, 4 with the multi-function input terminal
settings. The defaults are Acceleration Time 1 and Deceleration Time 1.
 The setting for Pr.01.19 changes the time unit of Pr.01.09–Pr.01.12, Pr.01.13, and Pr.01.14,
further changing the setting range of the acceleration / deceleration time.
01.00
01.09
01.11
01.10 01.12
Frequency
Time
Accel. Time
Decel. Time

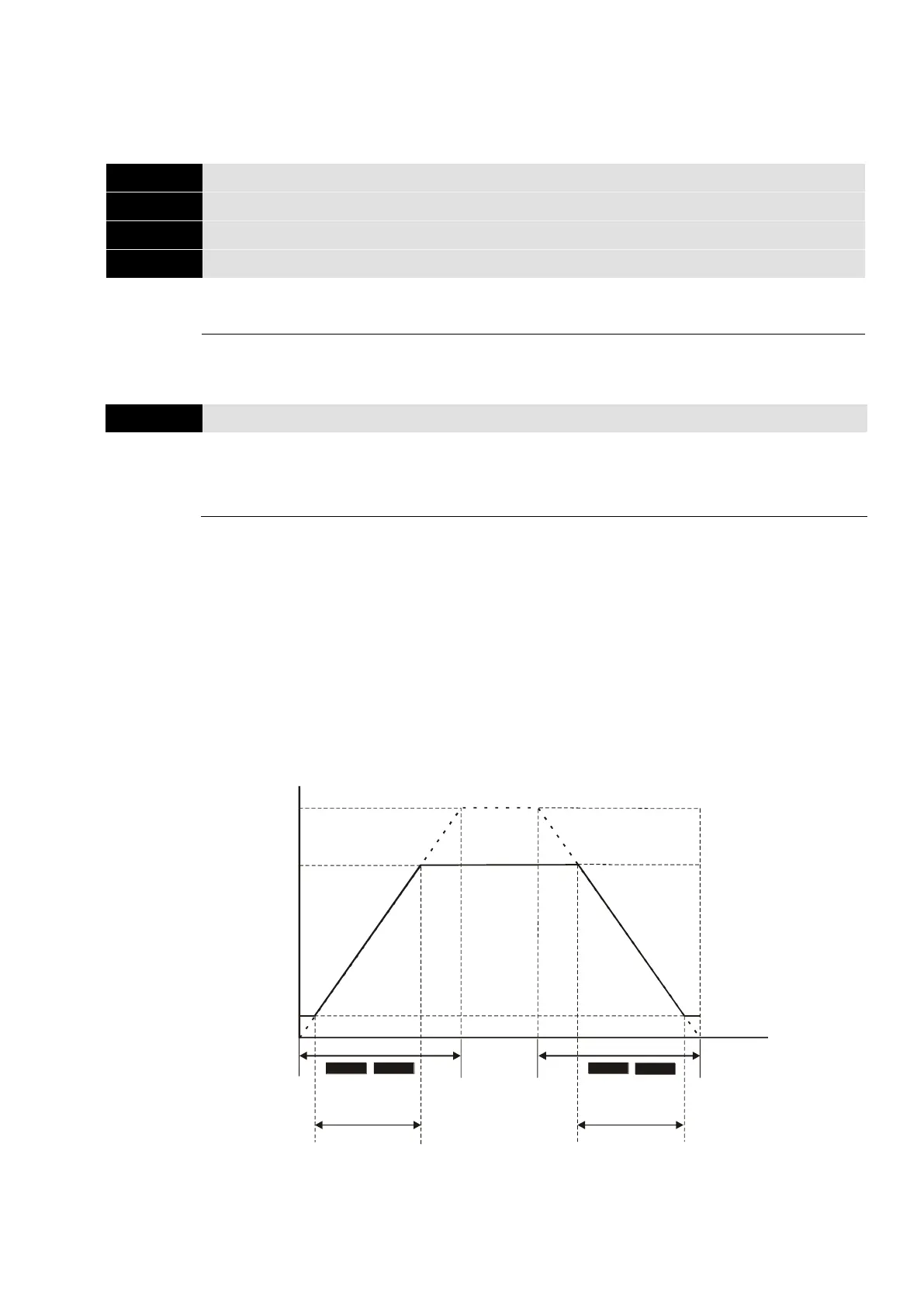

The definition of
Accel./Decel. Time
Max. output
Frequency
setting
operation
frequency
Min. output
frequency
01.05
Resulting
Resulting
Accel. Time
Decel. Time
Resulting Accel./Decel. Time
0 Hz
