JOG Acceleration Time
Default: 1.00
Settings
0.1–600.0 sec./ 0.01–600.00 sec.

01.14
JOG Deceleration Time
Default: 1.00
Settings
0.1–600.0 sec./ 0.01–600.00 sec.

01.15
JOG Frequency Setting
Default: 6.00
Settings
0.10–400.0 Hz
 Use only external terminal JOG (setting MI2, MI3 or MI4 to 8). When the JOG command is ON,
the AC motor drive accelerates from the Minimum Output Frequency (Pr.01.05) to the JOG
Frequency (Pr.01.15). When the JOG command is OFF, the AC motor drive decelerates from the
JOG frequency to stop. The acceleration/ deceleration time is set by the JOG Acceleration/
Deceleration time (Pr.01.13, Pr.01.14).
 The drive must be stopped before using the JOG command. During JOG operation, other
operation commands are not accepted, except FORWARD/REVERSE commands.
01.13
01.12
01.21
Frequency
Time
JOG Accel. Time
JOG Decel. Time

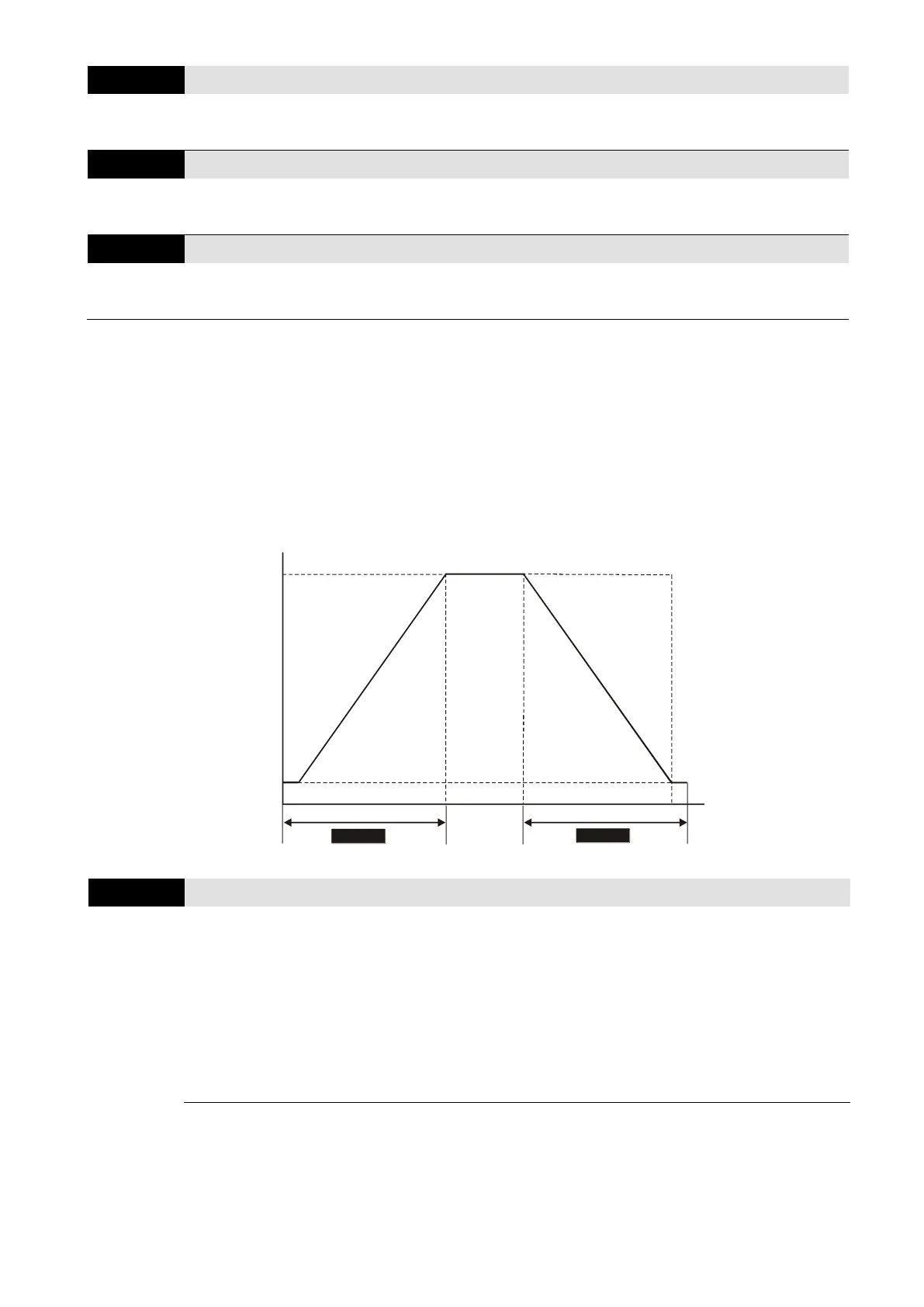

The definition of JOG Accel./Decel. Time
01.15
JOG
Frequency
Min. output
frequency
01.05
0 Hz
01.14
01.16
Auto-Acceleration / Auto-Deceleration Setting
Default: 0
Settings
0: Linear acceleration and deceleration
1: Auto-acceleration and linear deceleration
2: Linear acceleration and auto-deceleration
3: Auto-acceleration and auto-deceleration (set by loads)
4: Auto-acceleration and auto-deceleration (set by acceleration/ deceleration
time setting)
 With auto-acceleration and auto-deceleration, it is possible to reduce vibration and shocks
during starting and stopping the load; the drive auto-detects the load torque and automatically
accelerates from the fastest acceleration time and smoothest start-up current to the setting
frequency. During deceleration, the drive automatically determines the loaded regenerative
energy to steadily and smoothly stop the motor in the fastest deceleration time. When this
