Erect, assemble and connect F800
26 PR-2013-0105-GB • Subject to modifications • R2-04/2016

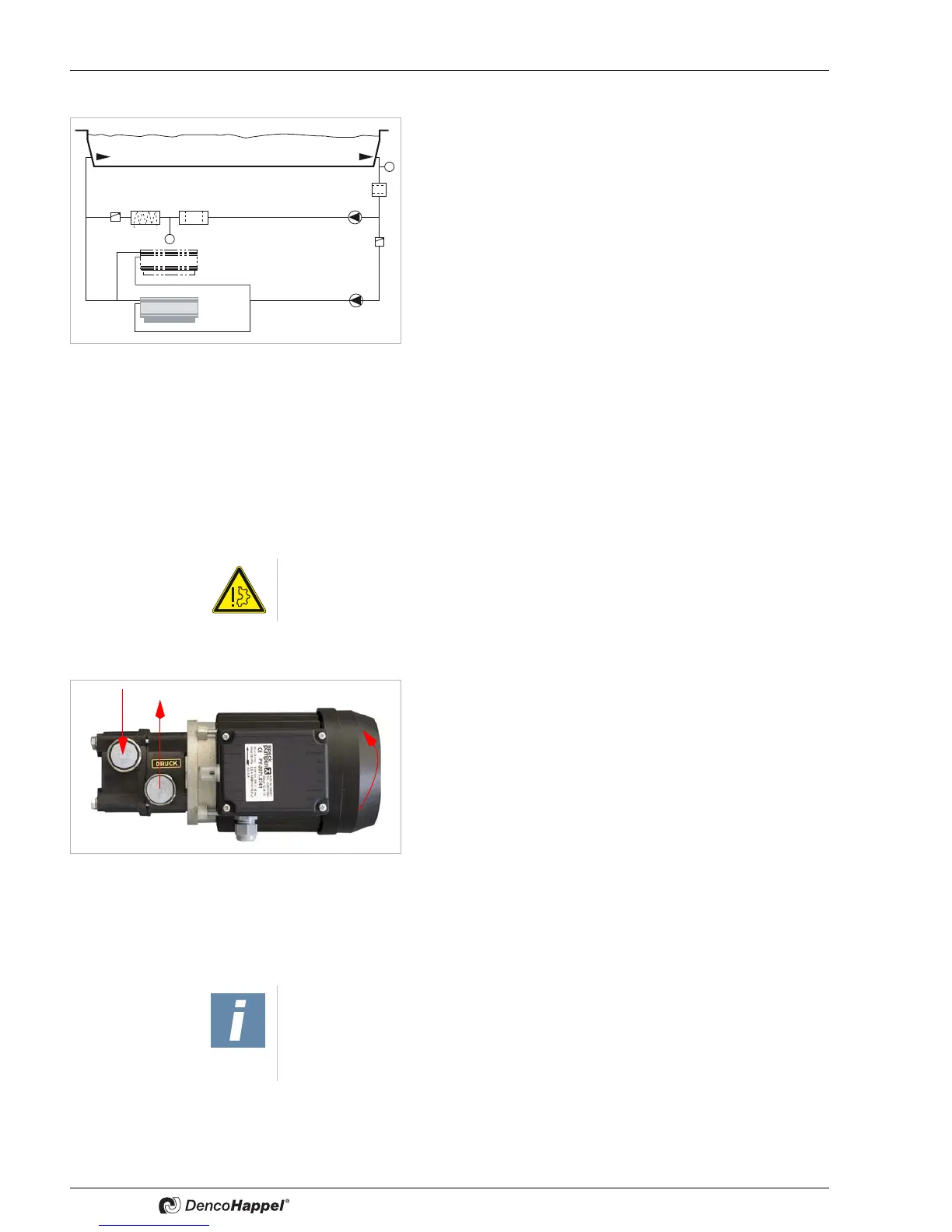

Example: connect pool water condenser parallel to the filter circuit
• Link the pool water condenser in such a way that the pool
water condenser circuit works parallel to the filter circuit with
only a pool water intake and pool water outlet.
There must be an electrical blocking of the filter pump with the
pool water condenser pump and non-return flaps or non-return
valves must also be included.
Because of the provided filter circulation times, the operator
must decide whether the filter pump for pool water condenser
pump operation or the pool water condenser pump for filter op-
eration is locked.
4.2.5 Connect pool water pump (optional)
For the connection of the pool water pump, proceed as follows:
• Pressure and suction lines must be arranged and connected
vertically upwards.
• Only use Teflon tape for sealing the threading.
• Electrically connect the pump according to the wiring dia-
gram.
Fig. 4-32: Connection of the pool water pump
1: Direction of rotation of the pump
2: Connection of the suction side
3: Connection of the supply line
In order to ensure the easy installation and removal of the pool water pump, suitable
building-side shut-off valves should be provided.
T
F
1
2
3
T
F
5
5
4
F800
possibly as slave unit
1: Filtering equipment pump
2: Pool water condenser pump
3: Filter circuit counterflow heating
4: Pool water condenser in the F800
5: Non-return valve or flap
F: Filter
T: Pool water thermostat
Damage to the unit! Pressure and suction side must not be interchanged!
The connecting lines must not be larger than 1/2".
1
Notice!
A motor circuit breaker is installed in the drive motor. After triggering, you can reset
by pressing the black push button on the terminal box (1).
If other pumps are present in the circulation, then these must be electrically locked
against the self-priming pool water pump.
