Erect, assemble and connect F800
16 PR-2013-0105-GB • Subject to modifications • R2-04/2016
4 Erect, assemble and connect
4.1 Positioning the unit
The F800 can be installed to dehumidify indoor swimming pools or other damp areas,
directly in the swimming pool hall or damp room or in ancillary rooms (rear-wall instal-
lation).
When setting up the unit, the good air circulation should provide
a homogenous temperature and humidity profile.

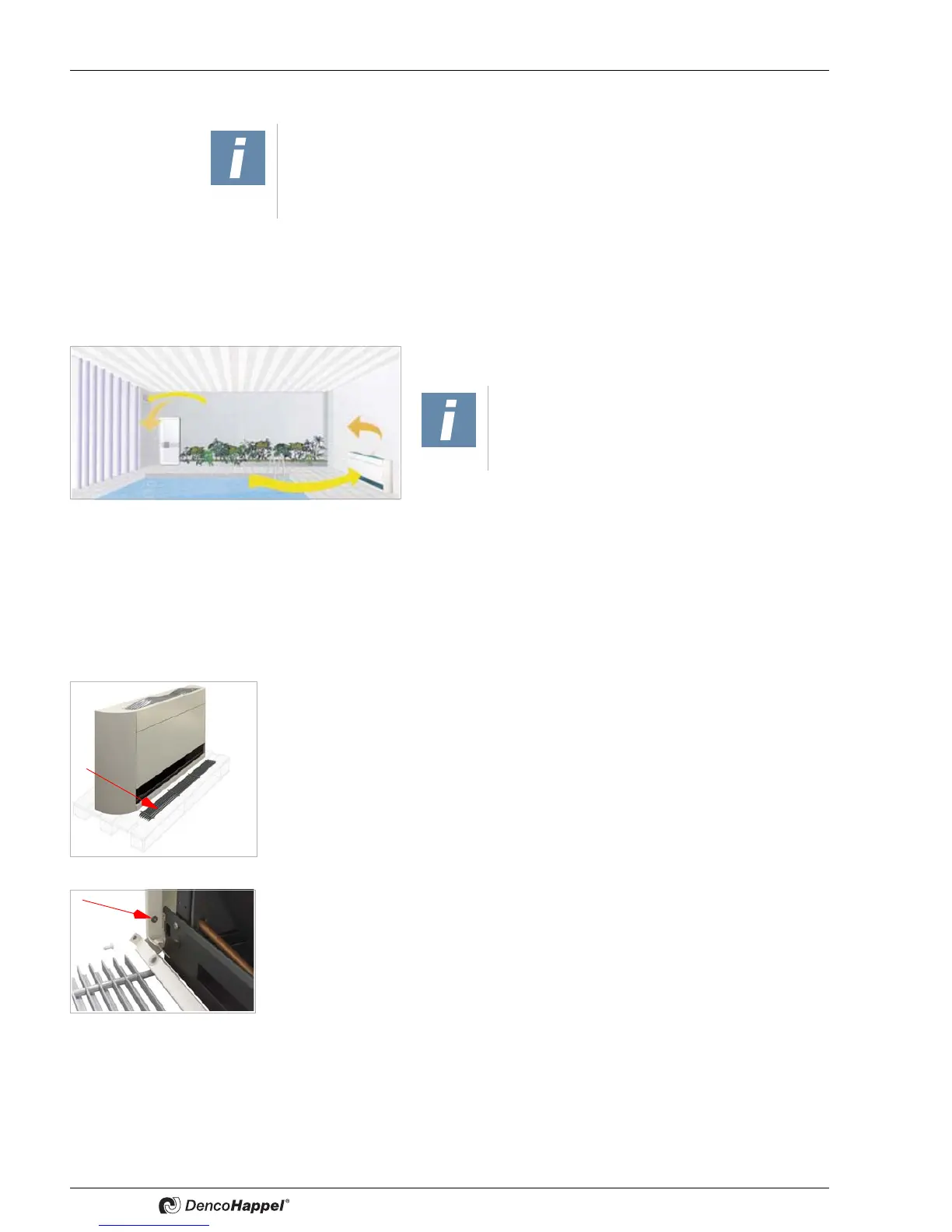

Fig. 4-1: Setting up in swimming pool/damp rooms
For installation with pool wa-
ter pump:
– Only set up the pool water pump in dry and frost-proof surroundings.
– Ensure sufficient fresh-air supply to avoid inadmissible warming of the drive motor.
– The pump can only be installed horizontally.
– Improper installation or opening the pump will result in loss of warranty service.
To install the unit, proceed as follows:
• If necessary, remove outer packaging.
• Grip into the air intake grille, shove it upwards, tip down and remove.
Fig. 4-2
• Unscrew both plastic screws at the lower sheet.
Fig. 4-3
Here you will find information on how to assemble and install the unit.
Mount and install exclusively by qualified staff. Qualified licensed staff or other per-
sons with proper professional training must be experienced in the relevant accident
prevention regulations, as well as other generally recognized safety and occupa-
tional health codes.
NOTICE!
Observe the minimum distances between unit and
pool edge according to VDE without fail.
