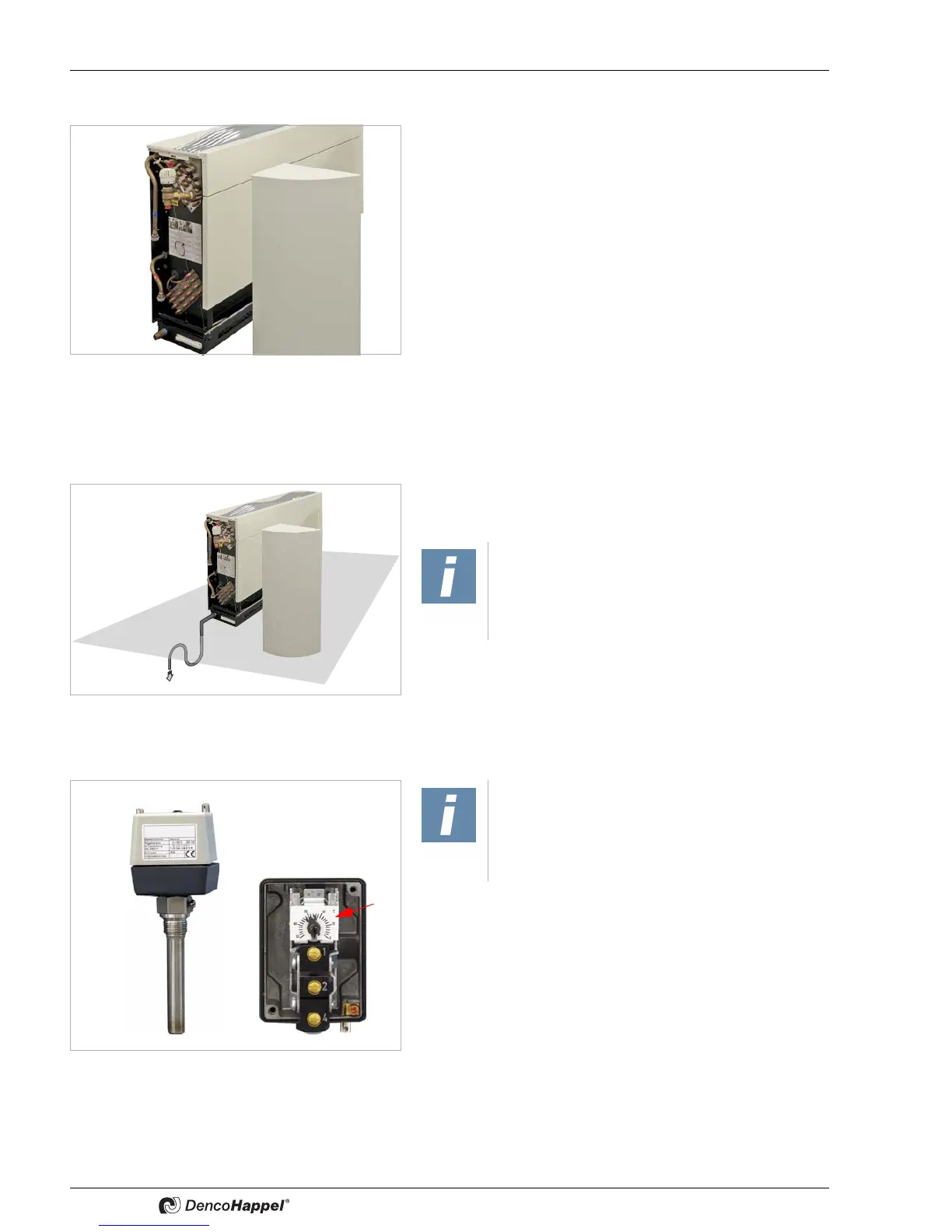

Erect, assemble and connect F800
24 PR-2013-0105-GB • Subject to modifications • R2-04/2016
4.2 Connect unit water-side
The water-side connections are found below the left lateral cas-
ing (1).
• Unscrew the plastic screws on the lower sheet metal as de-
scribed in the Fig. 4-3 on page 16.
• To install this lateral casing, pull it forward.
• To reduce structure-borne noise transmission, use only flex-
ible water-side connections.
Fig. 4-28: Water-side connections
4.2.1 Mount condensate drainage
• Lay the condensate piping with natural decline into the sew-
er pipeline.
• Be sure to build in a trap.
The condensate drainage must be carried out in a suitable ma-
terial, e.g. copper pipe, HT pipe etc.
Fig. 4-29: Condensate drain
4.2.2 Assemble pool water immersion thermostat
In order to set the pool water immersion thermostat to the set-
point temperature of the pool water, proceed as follows:
• Unscrew lid of the pool water immersion thermostat.
• Adjust the setting knob (1) to the setpoint temperature of the
pool water.
The setpoint temperature for the pool water heating unit in the
filter circuit should be set to about 1 to 1.5 K below the actual
pool water setpoint temperature in order to maintain a minimum
pool water temperature.
Fig. 4-30 The setpoint temperature of the pool water should be main-
tained by these settings with the delivery of free thermal output
to the pool water by the F800.
