F800 Erect, assemble and connect
PR-2013-0105-GB • Subject to modifications • R2-04/2016 17

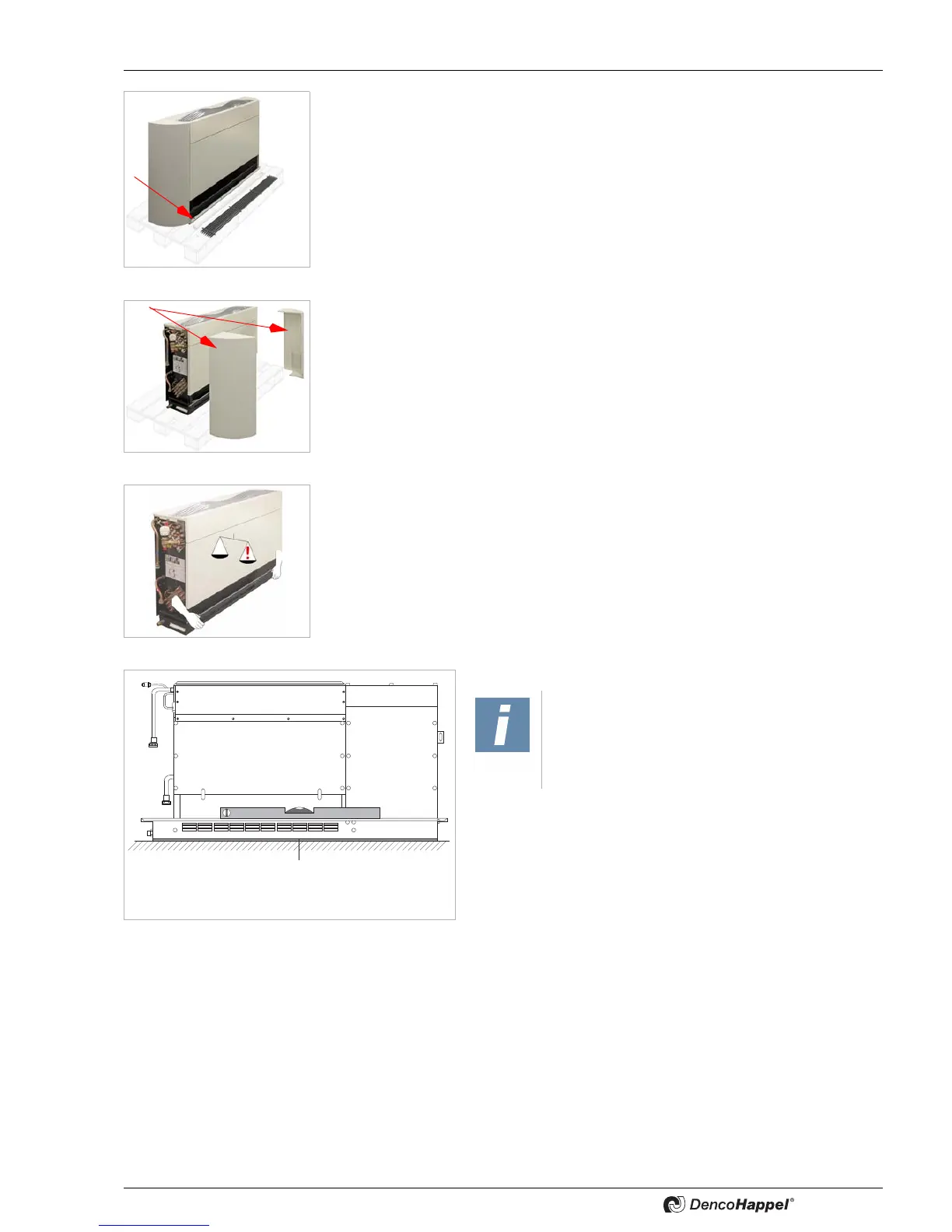

• Tilt the support sheet (for the grille) forwards and push it out.
Fig. 4-4
• Push the lateral casing forwards and remove.
Fig. 4-5
• Take the unit off the pallet and set it up at the installation site.
Only grip the unit on the base frame! The weight is considerably greater on the
switch box side (refrigeration system with compressor)!
Fig. 4-6
• Set the F800 only on a level and fortified surface.
• For additional sound insulation on the building-side, please
observe: underlay base frame on the whole surface, max.
pressing 1 mm.
4.1.1 Move the air discharge forwards (alternatively)
The F800 is standardly delivered with the air discharge upwards.
In order not to hamper the air outlet e.g. by installing a unit in a niche, the air discharge
can be moved forwards.
NOTICE!
To reduce noise, set the unit without fail on a
sound-absorbing surface.
This reduces the structure-borne noise transmis-
sion to the rest of the building.
