Erect, assemble and connect F800
18 PR-2013-0105-GB • Subject to modifications • R2-04/2016

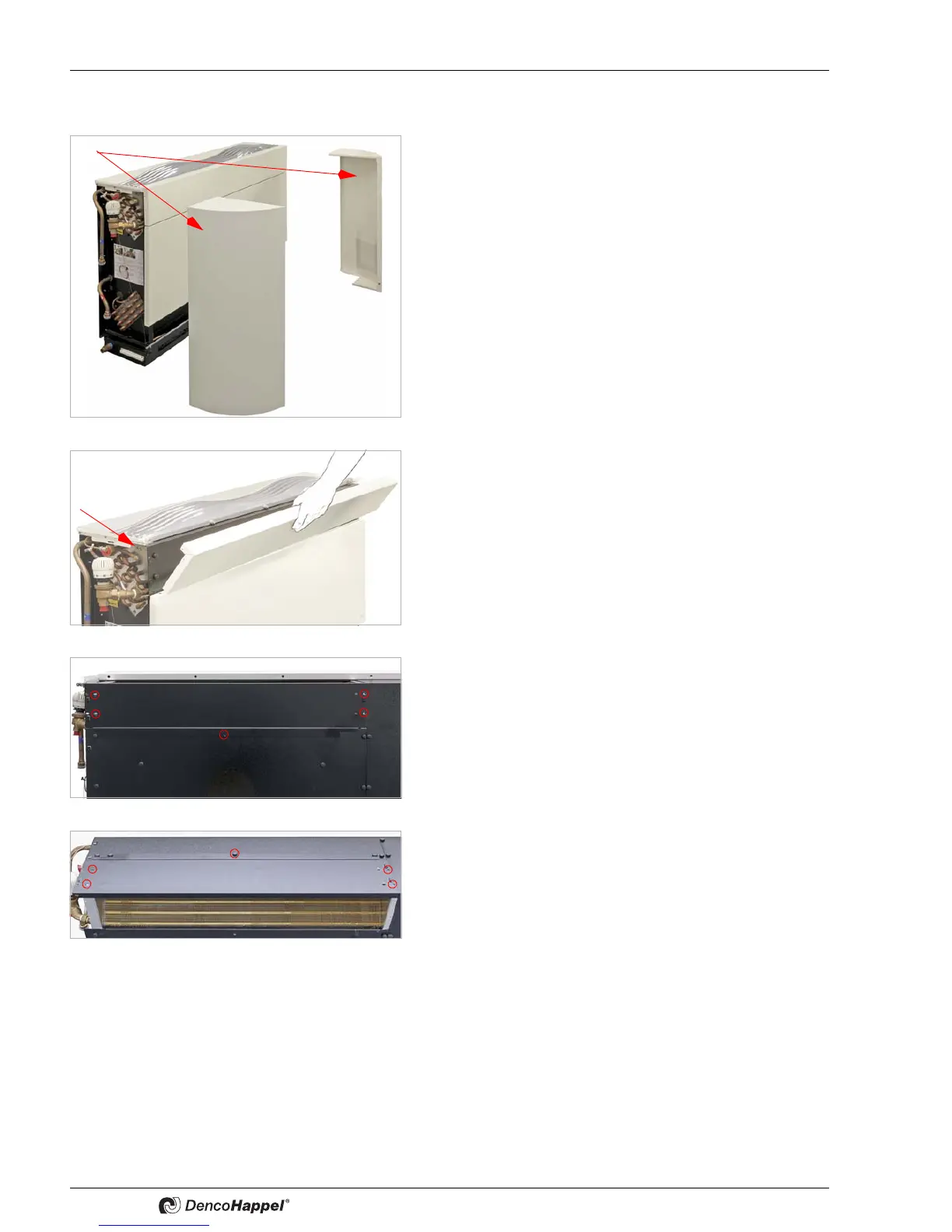

For this modification, proceed as follows:
• Unscrew both plastic screws on the lower sheet as de-
scribed in the Fig. 4-3 on page 16.
• Push the lateral casing forwards and remove.
Fig. 4-8
• Unscrew both screws (1) of the upper cover.
• Tilt the cover forwards and remove.
• Remove air discharge grille (2)
• Remove front sheet material cover (3)
Fig. 4-9
• Remove the plastic caps of the screws.
• Unscrew screws of the internal covering.
Fig. 4-10
• Unscrew upper sheet metal cover.
• Lay internal covering upwards above the previous air dis-
charge and assemble with the screws.
• Set the plastic cap on the screws.
Fig. 4-11
